Overview

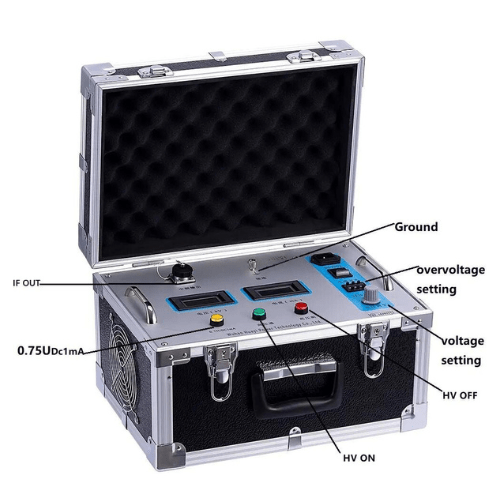

Hospitality Enviro Tech voltage generator circuit tester apply to direct current voltage test and leakage test of zinc oxide arrester, magnetic blow arrester, power cable, transformer, generator and other equipment in electric power, railway, chemical industry, mining, metallurgy, steel and other departments. And can also be used for electrostatic dust collection, spraying and other power supply.
Features:
- Output voltage stable
- Comprehensive protection
- Protection, breakdown, circuit protection using nano second special sensor
- 75 U function
- Voltage stepping from zero
- Over-voltage setting

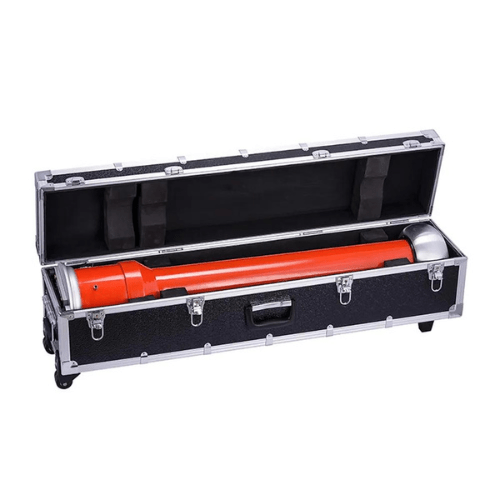

- Integral design cylinder and the host are placed in a box.
- Reliable performance
- The operation is simple
Technical Specifications:
| Power supply | 220 V |
| Rated | 60 KV to 120 KV |
| Rated | 2 mA, 3 mA, 5 mA |
| Rated power | 120 W, 180 W, 300 W, 240 W, 360 W |
| Voltage cylinder height | 17.32 in to 21.06 in (440 mm to 535 mm) |
| Accuracy of output voltage | ± (1.0% R ± 2 D) |
| Accuracy of output current | ± (1.0% R ± 2 D) |
| Ripple factor | ≤ 0.5% |
| Working mode | Intermittent use, 30 minutes under rated load |
| Over-load capacity | The no-load voltage can exceed the rated voltage 10% for 10 minutes
The maximum charge current is 1.25 times of the rated current |
| Power | AC 220 V ±10% 50 HZ |
| Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Relative Humidity | less than 85% under 77 °F (25 °C), without moisture
Altitude less than 0.93 mi (1500 m) |
| Volume | 18.31 in x 15.35 in x 7.48 in (465 mm x 390 mm x 190 mm),
22.24 in x 15.35 in x 7.48 in (565 mm x 390 mm x 190 mm) |
| Weight | 19.84 lb (9 kg),
22.05 lb (10 kg) |
