Features
- Easy USB program upgrades and data transfer capability
- Versatile for rotor balancing in production or field settings
- Balance various equipment like rollers, armatures, fans, etc
- FFT analyzer aids in vibration diagnostics effortlessly
- Selectable for one or two-plane rotor balancing jobs
- Built-in ISO 1940 standard for easy evaluation
- Switchable between different vibrating units (g, mm/s, μm)
- 5-hour runtime with Li-ion battery and battery indicator
- RPM tachometer and auto-detecting accelerometer conditioning
- Touch screen for convenient function access
- Built-in weight calculating functions for quick applications
- Mini USB drive for easy data transport to PC
Technical Specifications
| Measurement Range | Acceleration(G) 0.0001 to 25G Velocity (mm/s) 0.00039 in/s to 51.18 in/s (0.01 mm/s to 1,300 mm/s) Displacement(μm) 0.01 μm to 6,000 μm (at 1800 rpm) |
| Accuracy | 0.1 mG, 0.01 mm/s, 0.01 μm (at 1800 rpm) |
| Phase Accuracy | 0.1° |
| Rpm Range | 100 rpm to 60,000 rpm |
| Power Consumption | 7 W |
| Rpm Tachometer | Fiber Photo Switch |
| Tachometer Distance | 2.36 in (60 mm) |
| Vibrating Pickup | Accelerometer 100 mV/g |
| CPU | Vortex 300 MHz (32 bits high-speed CPU) |
| LCD Display | Touch Screen 320 × 240 pixel with LED backlight |
| Working Temp | 32 ˚F to 122 ˚F (0 °C to 50 °C) |
| Vibrating Unit | Acceleration (G o-p), Velocity (mm/s o-p), Displacement (μm P-P) |
| Battery | Rechargeable Li-ion |
| Power Adaptor | 100 VAC to 240 VAC Adaptor 50 Hz or 60 Hz |
| Storage | One USB2.0 or USB flash disk |

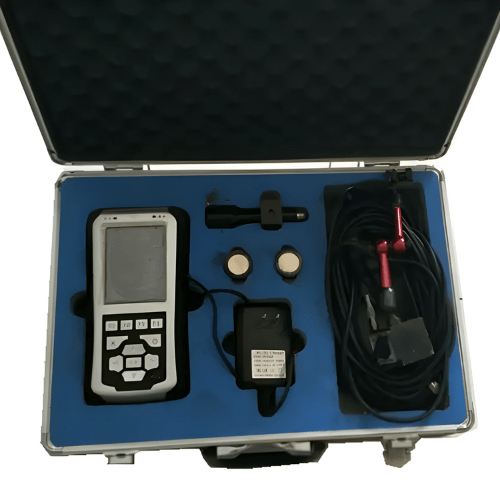

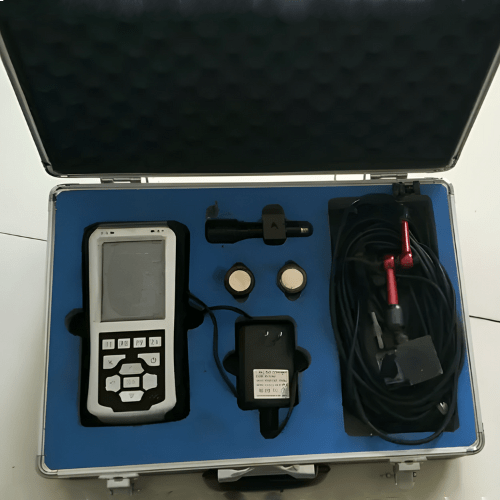

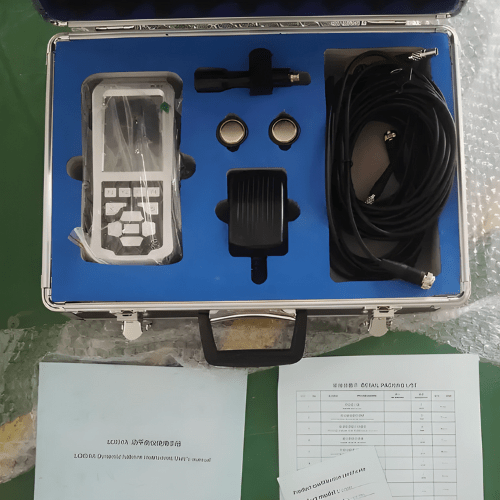

| Accessories | Accelerometer ×2, MB504 Magnetic Stand×2, Fiber Photo Switch ×1, Laser Switch (Optional), Power Adaptor ×1, Sensor Cable ×2, Scissors, Reflecting Paper, Glue, Carrying Case ×1, User’s Manual ×1, Report software CD ×1 |
| Dimension | 8.27 in x 7.48 in x 1.77 in (210 mm × 190 mm × 45 mm) |
| Instrument Weight | 2.65 lb (1.2 kg) (including battery) |
