Overview

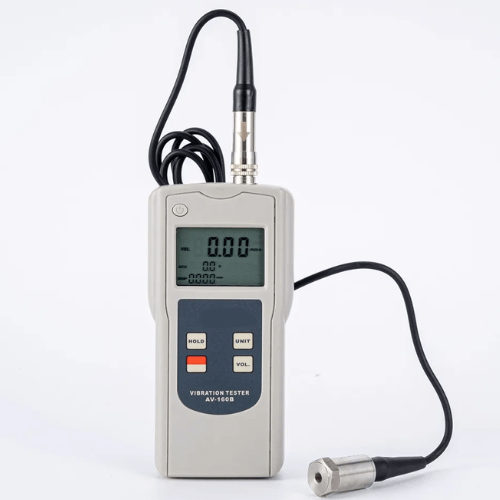

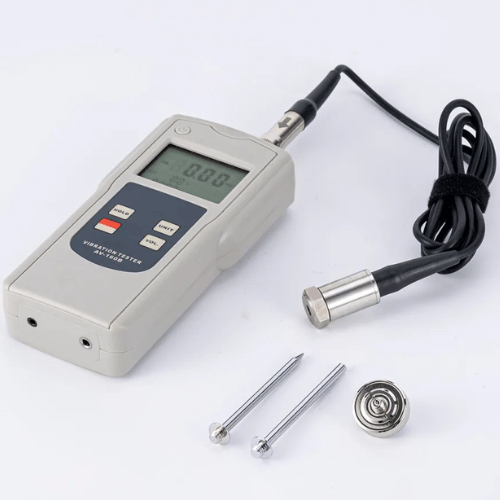

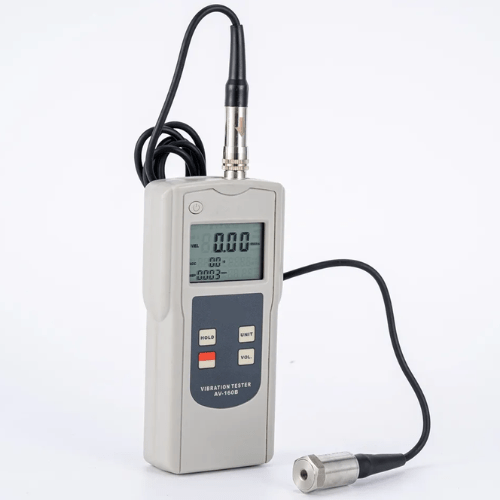

Hospitality Enviro Tech vibration meter, the Vibration Tester can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously; Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Features
- Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.
- In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
- Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
- Individual high quality accelerometer for accurate and repeatable measurements.
- Wide frequency range (10Hz~10kHz) in acceleration mode.

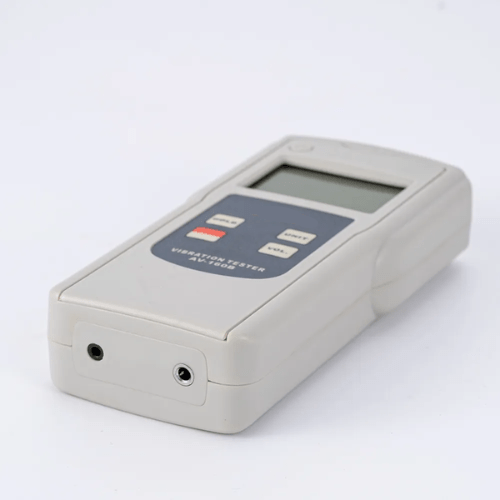

- AC output socket for headphones and recording.
- Optional headphones for use as electronic stethoscope.
- Bearing condition monitoring function.
- Use USB data output with connection PC.
- Provide Bluetooth data output choice
Technical Specifications
| Accuracy | ± 5 % + 2 digits |
| Measurement Range | Displacement : 3.937008e-5 in to 0.16 in ( 0.001 mm to 4.000 mm) equivalent peak-peak / 0.0015 in to 6.30 in (0.04 to 160.0 mm) Velocity : 0.0039 in/ s to 15.74 in/s (0.1 mm/s to 400.0 mm/s) true RMS / 0.004-16.00 inch/s Acceleration : 0.32 ft/s2 to 1312.34 ft/s2(0.1m/s2 to 400.0 m/s²) equivalent peak/ 0.0-40g |
| Frequency Range | Displacement : 10 Hz to 1 kHz. Velocity :10 Hz to 1 kHz. Acceleration: 10 Hz to 10 kHz. |
| Operating Conditions | Temperature : 32 ˚ F to 122 ˚ F (0˚ C to 50 ℃) Humidity : below 95 % RH |
| Analogue Output | AC output 0 to 2.0 V peak full scale (load resistance: above 10k) |
| Power Supply | 4 x 1.5 AAA (UM-4) Battery |
| Size | 5.511 in x 2.75 in x 1.18 in (140 mm x 70 mm x 30 mm) |
| Weight | 0.29 lbs (130 g) (Not including Batteries) |
