Overview

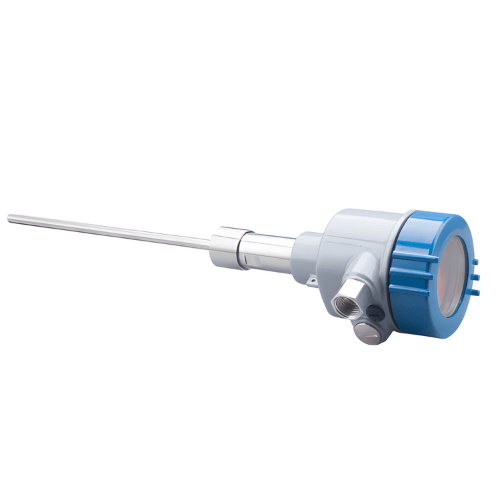

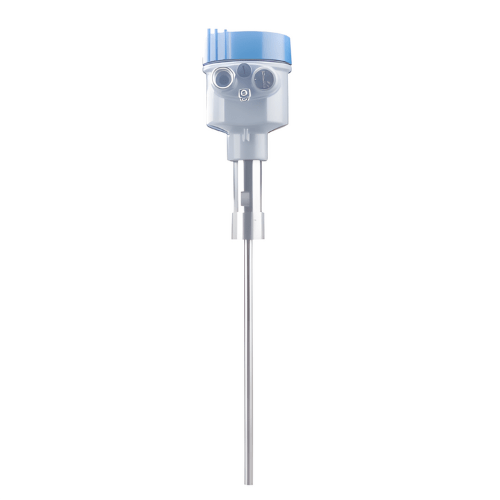

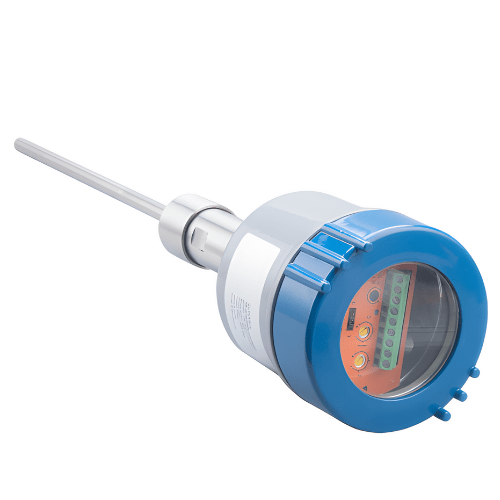

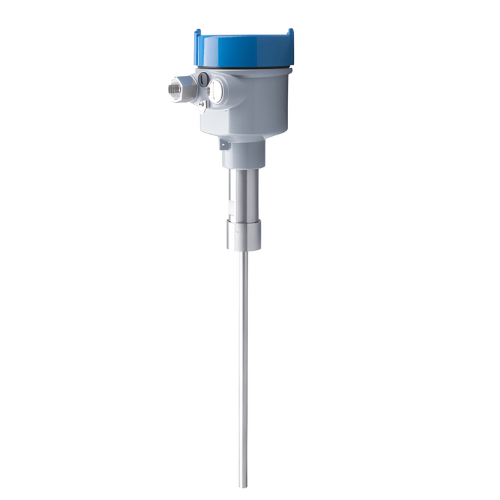

Hospitality Enviro Tech vibration level meter used adopts an anti-adhesion circuit, which can remove the influence of adhesion and false level signal hanging around the probe while detecting the real level. The vibration probe level meter can detect whether they have (high level) or not have (low level) materials in various containers according to the working principle of ash storehouse sensing. It can set high level or low-level fault alarm. Vibration probe level meter can measure various process material, such as refined oil, gasoline, conductive mud, etc.
Technical Specifications
| Medium | Liquid, powder, particle, solid |
| Supply Voltage | 24 VDC or 220 VAC |
| Output Way | DPDT relay (Double-pole double-throw) |
| Operation Pressure | Less than 2MPa |
| Time-lapse | 0 s to 30 s (optional) |
| Capacitor | 5 A |
| Probe Material | SS304/SS316 selected, PTFE for N, M Type, Ceramic for H type |
| Thread Spec | G 1/2″, G1, NPT 3/4. NPT 1, Flange, customized others |
| Electrical Connection | M20 × 1.5 (Standard), customized others |
| Ingress Protection Of Shell | IP67 |
| Sensitivity | 0.5pf to 750pf |
| Ambient Temp | -4 °F to 176 °F (-20 °C to 80 °C) |
| Medium Temp | -4 °F to 120 °F (-20 °C to 120 °C) (normal), 248 °F to 500 °F (120 °C to 260 °C) (middle Temp), more than 500 °F (260 °C) (High Temp) |
