Overview
Hospitality Enviro Tech universal thermocouple temperature data logger is the basic functions of the paperless recorder, contains relay output. If optional functions are required, the price should be increased on the basis of basic functions.
Features
• 11 adjustable record intervals
• Versatile communication options
• Full support for 32 signals
• 16 total isolations
• High-quality automatic SMT patch process enhances production efficiency

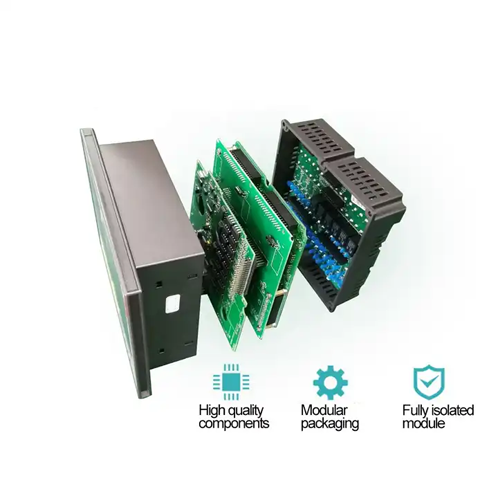

• Fully isolated design reduces signal interference and increases channel numbers
• Safe, stable, and durable ABS flame-retardant material
Technical Specifications
| Accuracy | Real time display +-0.2% F.S , Recall accuracy +-0.2% F. S |
| Processor | High – performance arm Cortex- M3 32 bit RISC core can be used to collect, record, display and alarm multiple signal |
| Voltage Input | 0 V to 5 V, 1 V to 5 V or 0 mV to 20 mV or 0 mA to 100 mA |
| Current Input | 0 mA to 10 mA, 4 mA to 20 mA, 0 mA to 20 mA |
| Resistor Input | 0 Ω to 400 Ω |
| Thermal resistance | PT 100, Cu 50, G53, Cu100, BA1, BA2 |
| Alarm output | Up to 6 relay alarm output |
| Recording capacity | 248 MB |
| Power supply | 100 VAC to 240 VAC, 50 HZ or 60 Hz Ac power supply |
| Storage temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Working Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Weight | <=3.30 lb (1.5 kg) |
