Overview

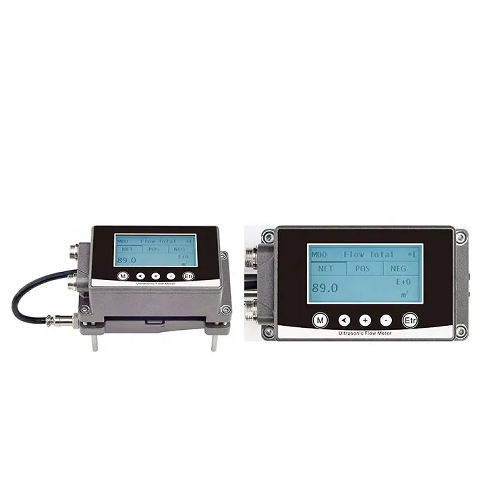

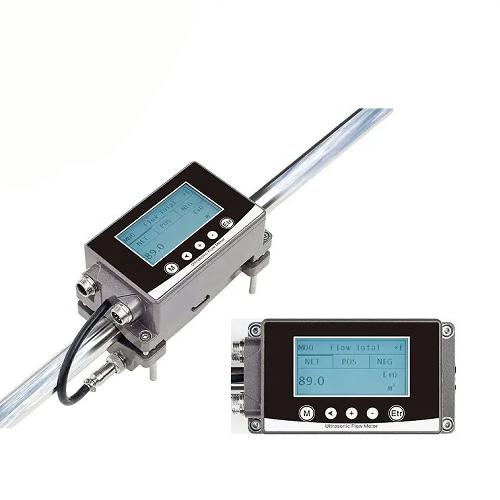

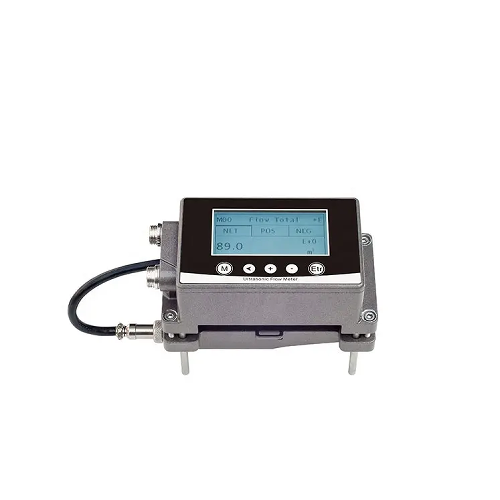

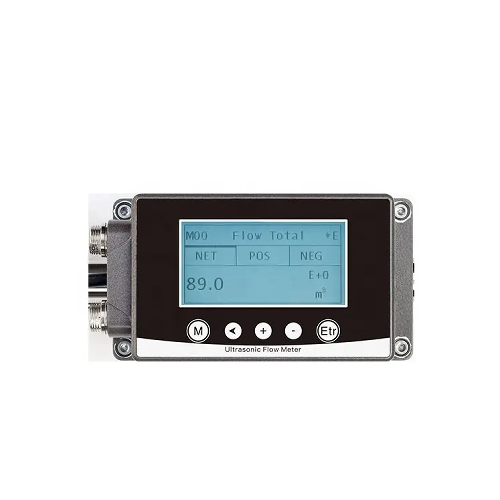

Hospitality Enviro Tech universal small pipe clamp-on ultrasonic flowmeter the first choice for small pipe diameters of DN 15 to DN 40: simple installation and convenient operation. There is no need to break the pipe or stop the construction for a long time, and the installation can be easily completed in a few minutes. The device adopts a new clip-on design that does not touch the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flow meters. A variety of modes can be set, flexible and diverse. A set of machines can measure all calibers in the general range and is suitable for a variety of metal pipes and resin pipes. It can be selected as an ultrasonic cooling (heating) meter to monitor and measure energy consumption.
Features
- Easy to read the data
- Simple installation and easy operation
- Suitable for a variety of metal pipes and resin pipes
- M 12 aviation plug, no wiring required
Technical Specifications
| Liquid Type | Water or other liquid (Single liquid medium without solid particles or impurities) |
| Temperature Range | 32 °F to 167 °F (0 ℃ to 75 ℃) (No freezing on the surface) |
| Low Velocity Cut Off Value | 0.1 m/s |
| Display | 256 Pixels x 128 Pixels, LCD |
| Response Time | 0.5 s to 60 s |
| Accuracy | ±2%, (±1% after calibration) |
| Data Storage Period | 300 ms |
| Memory For Data Backup | EEPROM (Data storage: over 10 years, data read or write frequency: over 1 million times) |
| Power And I/O Connection | M12 type aviation plug |
| Output | 4 mA to 20 mA |
| Communication | Modbus RS485 |
| Options For Output | OCT (pulse output) or One relay alarm (please contact the factory) |
| Power Supply | 10 V to 24 V DC |
| Electric Power | <3 W |
| Protective Circuit | Power reverse connection protection, Power surge protection,Output short circuit protection, Output surge protection |
| Enclosure Protection Class | IP 65 |
| Environment Temperature | 14 °F to 140 °F (-10 ℃ to 60 ℃) (No freezing) |
| Relative Humidity | 35% to 85% RH (No condensation) |
| Vibration Resistance | 10 Hz to 55 Hzdouble amplitude 0.05 in (1.5 mm), 2 hrs in each XYZ axis |
| Impact Resistant | 100 m/s 2 16 ms pulse, 1000 times each for X, Y and Z axis |
| Main Material | Aluminum, Industrial Plastics |
| Cable Length | 6.56 ft (2 m) (standard), PT 1000 sensor standard cable length is 29.53 ft (9 m) |
