Overview

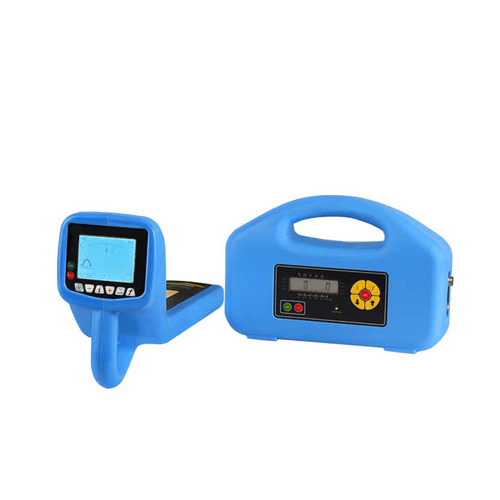

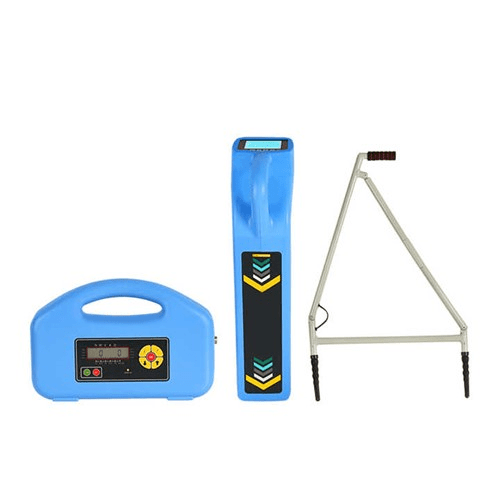

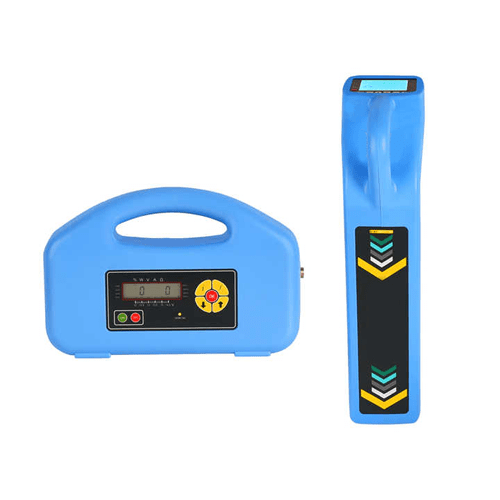

This Underground Electric Cable Fault Detector has positioning accuracy of in-depth ± 5%, detection depth of 196.8 in, and output power of 10 W.
Features
- Wide range of applications
- One machine for multiple uses
- Fast and accurate reception
- High precision easy to use
Technical Specifications
| Detection depth | 196.8 in (5 m) |
| Detection mode | Direct connection method or Clamp method induction |
| Positioning accuracy | In-depth ± 5% |
| Output power | 10 W |
| Operating mode | Valley method (vertical coil), crest method (horizontal coil) |
| Working frequency | Low or Radio or High or Intermediate frequency |
| Battery | Lithium batteries |
| Operating temperature | 14c°F to 131c°F (-10 ℃ to 55 ℃) |
| Dimensions | Transmitter 6.29 in x 6.29 in x 15.3 in (16 cm x 16 cm x 39 cm) Receiver 27.5 in x 7.87 in x 4.33 in (70 cm x 20 cm x 11 cm) |
| Weight | 17.63 lb (8 kg) |
