Overview

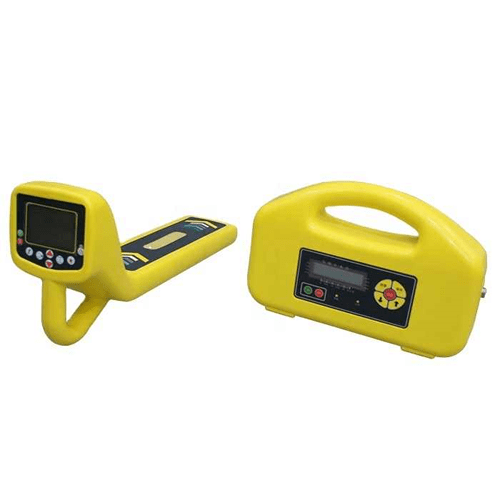

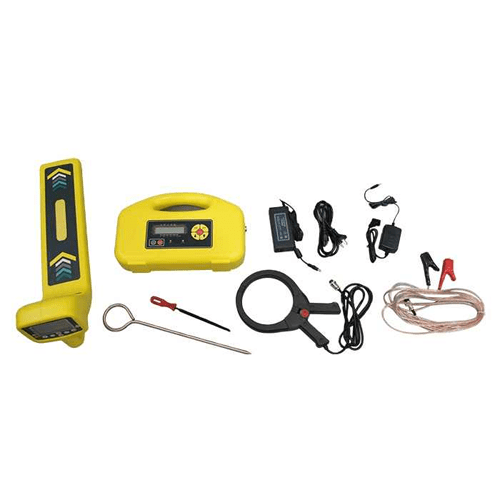

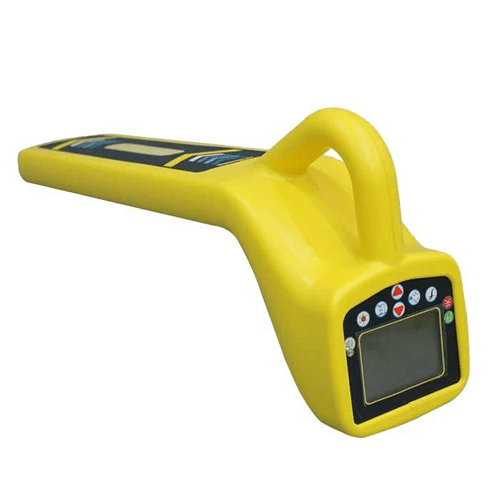

Hospitality Enviro Tech underground cable pipe detector is a high performance underground metallic pipe locating system. It consists of a transmitter and a receiver, which can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. It can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
Features
- Compass display: to display pipe position directly
- Use the left or right arrow to indicate the pipe position when route tracing
- Real-time test the pipe current direction to indicate tracing result
- Real-time depth measure and current measure
- History curve display: to display the signal variation directly
- Clamp (optional) identification and sensor identification
- Use the A frame to pinpoint the pipe insulation damaged points against the ground
- Digitization high accuracy sampling and processing
- Multiple locating frequency: active detection and passive detection
- Direct connection output, Clamp Coupling input, Radiation output
- Big capacity Li-on batteries series support auto power off
- Solid case and light weight easy to carry
Technical Specifications
| Transmitter output | Direct Connection output, Clamp Coupling Output (optional), Radiation output |
| Transmitter output frequency | 640 Hz (complex frequency), 1280 Hz (complex frequency), 10 kHz, 33 kHz, 83 kHz |
| Transmitter output power | max. 10 W, 10 levels adjustable, auto impedance matching |
| Transmitter direct connection voltage | max. 150 Vpp. Overload and short circuit protection |
| Transmitter HMI | 128 x 64 LCD |
| Transmitter power supply | 4 X built-in 18650 Li-ion batteries, standard 7.4 V, 6.8 Ah. |
| Receiver input | Internal receiving loop, Clamp (optional), sensor (optional), fault locating A Frame (optional). |
| Receiver frequency | Active frequency: 640 Hz, 1280 Hz, 10 kHz, 33 kHz, 83 kHz Power frequency: 50 Hz/60 Hz ,250 Hz/300 Hz Radiation frequency passive frequency: centre frequency 10 kHz, 33 kHz, 83 kHz |
| Receiver pipe detection mode | wide peak method, narrow peak method, valley method |
| Receiver cable identification mode | Receiving Clamp (optional) intelligent identification and sensor (optional) identification |
| Receiver HMI | 320 x 240 LCD |
| Receiver built-in battery | 2 X 18650 Li-ion batteries, standard 7.4 V, 3.4 Ah |
| Charger | input AC 100 V to 240 V, 50/60 Hz, output DC 8.4 V, 2 A |
| Temperature | 14 °F to 104 °F (-10 °C to 40 °C), humidity 5% to 90%, elevation < 4500 m |
| Transmitter volume | 10.6 in x 8.66 in x 3.34 in (270 mm x 220 mm x 85 mm) |
| Receiver volume | 27.5 in x 10.6 in x 4.72 in (700 mm x 270 mm x 120 mm) |
| Transmitter weight | 4.85 lb (2.2 kg) |
| Receiver weight | 4.85 lb (2.2 kg) |
