Overview

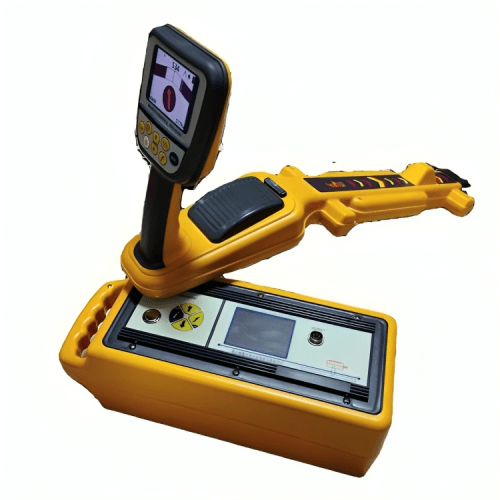

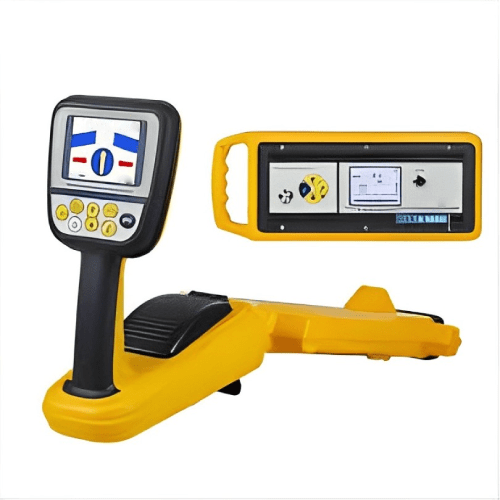

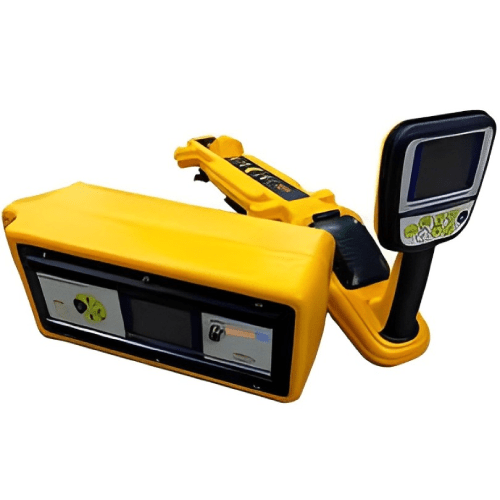

Hospitality Enviro Tech underground cable fault locator is a high-performance underground metal pipeline detection system, is composed of a signal transmitter and receiver, can be used for metal pipe, path detection of underground cable, pipeline census and depth measurement, with a variety of optional accessories, can undertake uniqueness identification, and pipe insulation damage and some types of cable fault lookup.
Features
- Compass Display: Visually display pipeline location
- The left and right arrows show the location of the pipeline
- Tracking correctness and error prompts
- Depth and current measurements are made in real time
- History curve display: Visually display signal changes
- Unique identification
- Ground fault finding
- All-digital high-precision sampling and processing
- Multiple detection frequencies
- The transmitter has a variety of signal output methods
- The transmitter has high power output, adjustable output in multiple gears
- Built-in high-capacity lithium-ion battery pack
- The case is sturdy, lightweight and portable
Technical Specifications
| Output Power | 10 W |
| Output Voltage | 60 V |
| Maximum Output Current | 1 A |
| Continuous Working Time | 1 W ≥ 12 hours |
| Working Time | 5 W ≥ 8 hours |
| Work Time | 10 W ≥ 5 hours |
| Humidity | 5% RH to 90% RH |
| Altitude | < 2.796 mil (4500 m) |
| Charger | Input AC 100 V to 240 V, 50 Hz or 60 Hz, output DC 8.4 V, 2 A |
| Ambient Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Transmitter Dimension | 10.6 in × 8.66 in × 3.34 in (270 mm × 220 mm × 85 mm) |
| Receiver Dimension | 27.5 in × 10.6 in × 4.72 in (700 mm × 270 mm × 120 mm) |
| Transmitter Weight | 4.8 lb (2.2 kg) |
| Receiver Weight | 4.8 lb (2.2 kg) |
