Overview

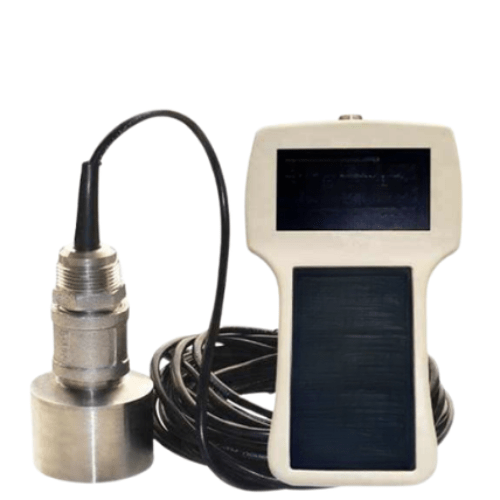

Hospitality Enviro Tech ultrasonic level meter is the instrument uses international advanced technology and has perfect functions of depth measurement, controlment, data transmission and man-machine communication. It is a combination of ultrasonic sensor,ultrasonic servo circuit, temperature compensation sensor and compensation circuit unit.
Features
- Long using life
- High reliability and precision
- Convenient to use and operate
- Widely used in hydrographic surveying
Technical Specification
| Range | 164.04 ft to 0.186 mi (50 m to 300 m) (Customize) |
| Blind | 31.49 in x 47.24 in (800 mm to 1200 mm) (according to range) |
| Accuracy | ±0.5% F·S (default) |
| Output signal | 4 mA to 20 mA, RS 485 |
| Application medium | Flesh water, sea water |
| Sensor Cable | Standard 32.8 ft (10 m) (Customizable: 65.61 ft, 98.42 ft, 164.04 ft (20 m,30 m,50 m) |

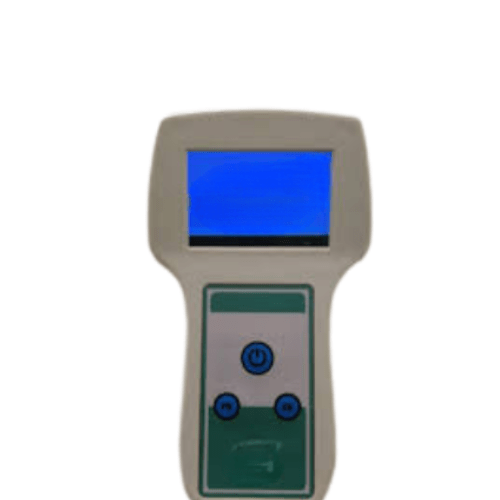

| Display mode | Multi information and large screen LCD display |
| Keyboard | Five light touch buttons |
| Mounting model | Instrument: hand-held portable Sensor: Thread |
| Charger | Input voltage:110 VA C to 240 VAC 50 Hz or 60 Hz output voltage:12.6 VDC 350 mA |
| Operation temperature | 32 °F to 104 °F (0 °C to 40 °C )(sensor), 14 °F to 122 °F (-10 °C to 50 °C) (instrument) |
