Features
- Convenient and efficient
- Effective protection
- Three electrode structure

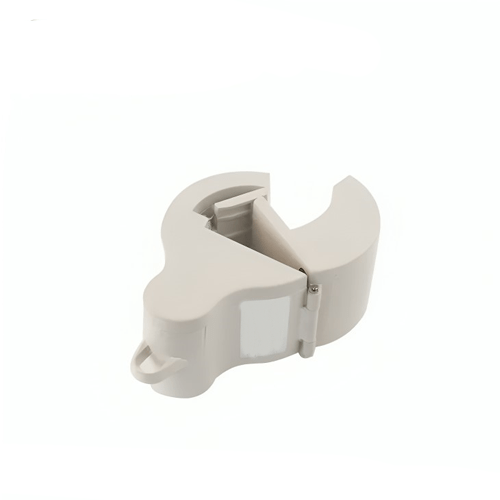

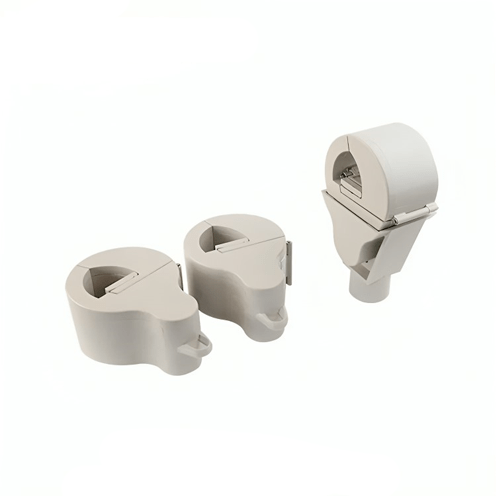

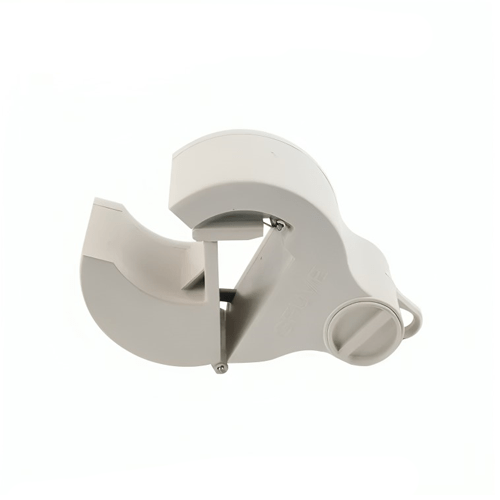

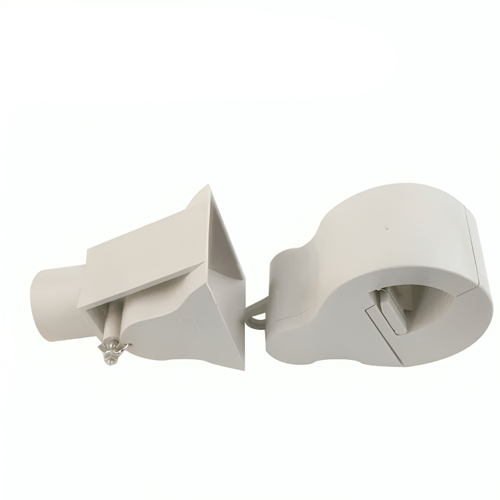

- External clamp sensors
Technical Specifications
| Accuracy | ± 1% |
| Display | Digital display; Chinese, English; Italian; Turkish can be customized |
| Interface | RS232 |
| Output | 1 way OCT pulse output |
| Pipe Material | Steel; stainless steel; cast iron; copper; PVC; aluminium, etc |
| Caliber | DN 0.98 in (25 mm) to DN 236.22 in (6000 mm) |
| Straight Pipeline | Upstream: 10D; Downstream: 5D; From the pump:3D; (D means outer diameter) |
| Medium | Single liquid that can conduct sound wave, such as water -22 °F to 320 °F (-30 °C to 160 °C) |
| Velocity | -12 m/s to 12 m/s |
| Special Cable | Shielded twisted-pair cable, length ≤50m |
| Protection Class | Sensors: IP68 |
| Consumption | 1 W |
| Housing | ABS material |
| Temperature | Main Unit: -4 °F to 158 °F (-20 ℃ to 70 ℃), Transducers: -22 °F to 320 °F (-30 °C to 160 °C) |
