Features
- Suitable for various industries and detection demands, including forged pieces
- Embedded computer system and large scale field programmable IC
- Cine loop function for recording dynamic scanning processes
- Color TFT LCD for optimized reading, measuring, and visual comfort
- Surface wave tracking function for immersion detection
- Features such as DAC, RF echo display, large memory, and USB port enhance
- Fast response time of the color TFT LCD for displaying fast scanning echoes
- Reliable and comfortable touch keypad
- Outstanding EMC design for increased field anti-interference capabilities
Technical Specifications
| Transmitter Pulse | Square Wave Pulsar |
| Transmitter Pulse Voltage | 25 V to 400 V, continuously |
| Test Modes | Pulse echo and dual transmission |
| Damping | 400 Ohm to 80 Ohm |
| Frequency | 0.5 MHz to 20 MHz Broadband / narrowband optional |
| Gain | 0.0 dB to 120.0 dB Steps as 0.1 dB, 1.0 dB, 2.0 dB, 6.0 dB |
| Material Velocity | 1000 m/s to 15000 m/s continuously adjustable. 30 common material velocities selectable |
| Rectification | Positive half wave, negative half wave, full wave, RF |
| Alarm | Real time alarm signal indicated by horn or LED indicator |
| Display | 5.7 in high brightness TFT colour LCD |
| Pulse Shift | -20 μs to 3400 μs |
| Probe Zero Offset | 0 μs to 999.9 μs |
| Pulse Repetition Frequency | 25 Hz to 1000 Hz, auto and manual adjustment modes |
| Vertical Linearity Accuracy | ≤2% |
| Horizontal Linearity Accuracy | ≤0.1% |
| Surplus Sensitivity | ≥65 dB |
| Resolutions | ≥45 dB |
| Dynamic Range | ≥32 dB |
| Reject (Suppression) | 0% to 99% |
| Electric Noise Level | <10% |

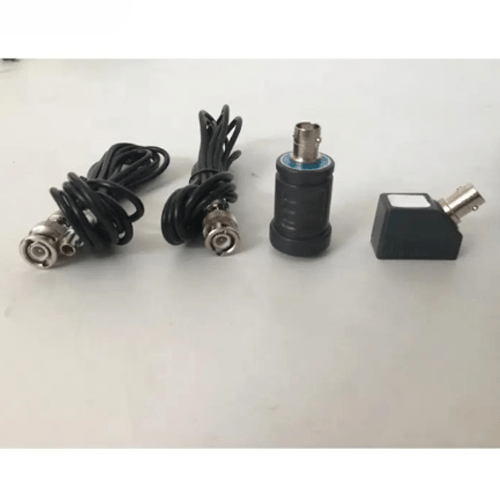

| Interface | C 6 transducer connections, USB HOST, LAN, RF OUT, Two-dimensional encoder interface |
| Power Supply | Large capacity Li Battery, no memory effect; Battery Operating time: More than 6 hrs |
| Relative HumIDity | 20% RH to 95% RH |
| Environmental Temperature | 4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Size | 18.89 in x 15.35 in x 6.29 in (48 cm x 39 cm x 16 cm) |
| Weight | 2.20 Ib (1 Kg) (with battery) |
