Overview

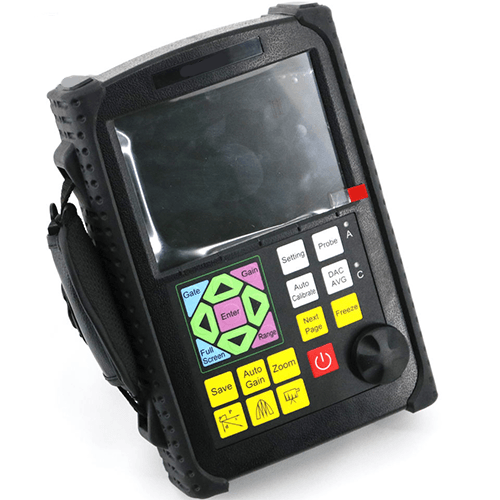

Hospitality Enviro Tech ultrasonic crack detector is a portable industrial non destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work piece without destruction. It can be used both in a lab and in the field.
Technical Specifications
| Vertical Linearity Error | ≤ 3 % |
| Horizontal Linearity Error | ≤ 0.1 % |
| Sensitivity Leavings | ≥ 62 dB |
| Dynamic Range | ≥ 34 dB |
| Resolving Power | ≥ 36 dB |
| Frequency Range | 0.5 MHz to 15 MHz |
| Gain | 0 dB to 120 dB |
| Material Velocity | 1000 m/s to 15000 m/s |
| Measurement Mode | Single, Dual, Thru |
| Reject | 0 % to 80 % |
| Pulse Displacement | -20 μs to + 3400 μs |
| Zero | 0.0 μs to 99.99 μs |
| Port Type | BNC / LEMO |
| Operating Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Measuring Range | 0 in to 393.70 in (0 mm to 10000 mm) |
| Size | 9.44 in × 6.14 in × 1.96 in (240 mm × 156 mm × 50 mm) |
| Weight | 2.20 Ib (1.0 kg) (with battery) |
