Overview

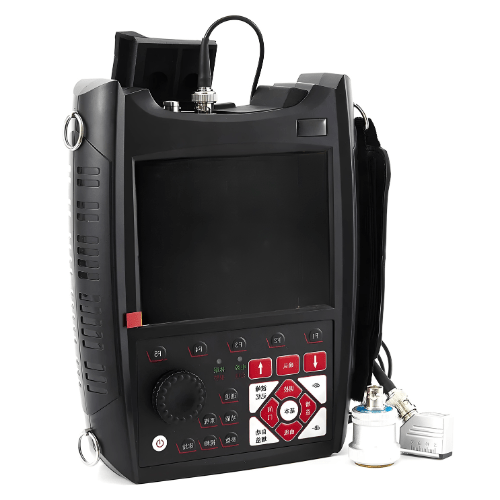

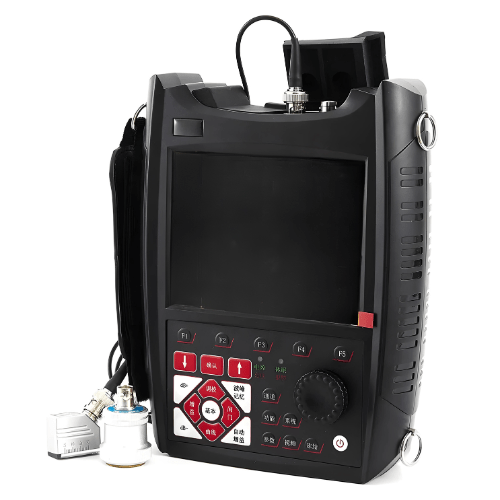

Hospitality Enviro Tech Ultrasonic Crack Concrete Detector is advanced type, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the workpiece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.
Features
- High detection efficiency and low cost
- Intelligent Analysis
- 260,000 color true color screen
Technical Specifications
| Detection Range | 0 to 9999 |
| Working Frequency | 0.2 MHz to 15 MHz |
| Sound Speed Range | 1000 m/s to 9999 m/s |
| Gain Range | 0 dB to 110 dB |
| Sampling Frequency | 100 MHz |
| Display Delay | – 20 μ s to + 3400 μ s |
| Probe Bias | 0 μ s to 99.99 μ s |
| Electric Noise Level | ≤ 10 % |
| Sensitivity Margin | > 62 dB |
| Resolution | > 40 dB (5p14) |
| Linear Inhibition | 0% to 80 % (Digital inhibition) |
| Vertical Linear Error | ≤ 3 % |
| Horizontal Linear Error | ≤ 0.1 % |
| Dynamic Range | ≥ 32 dB |
| Battery | 6 V × 3.7 V (lithium battery) |
| Power Supply | 8.4 V |
| Ambient Temperature | -4 °F to 122 °F (- 20 ℃ to 50 ℃) |
| Ambient Humidity | 20 % to 90 % RH |
| Size | 9.06 in x 6.69 in x 1.17 in (23cm × 17cm × 5.5 cm) |
| Weight | 3.43 lbs. (1.56 kg) (including leather cover) |
