Overview

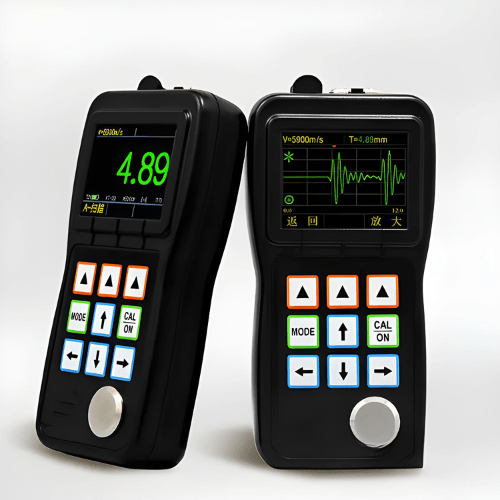

Hospitality Enviro Tech ultrasonic coating and material thickness gauge is used for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials. Also be widely used in manufacturing, metal processing industry, chemical industry, industry inspection and testing field.
Technical Specifications
| Display | 6.096 cm (2.4 in) color OLED,320 x 240 pixels, contrast 10000:1 |
| Operation Principle | Pulse echo with dual element transducers |

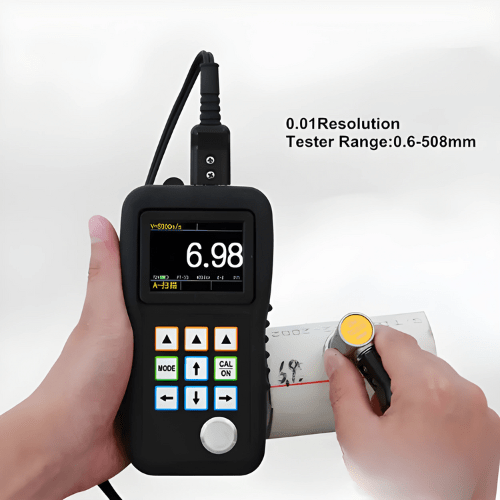

| Measuring Range | 0.60 mm to 508 mm (0.025 in to 20.00 in), depending on material, probe and surface condition |
| Coating Mode Measuring Range | 0.1181 in to 0.9843 in (3 mm to 25 mm) (UM-4D, UM-4DL) |
| Measuring Limits of Tube (Steel) | Φ0.79 in x 0.12 in (Φ20 mm x 3.0 mm) (Standard probe) Φ0.59 in x 0.08 in (Φ15 mm x 2.0 mm) (PT-06 probe) The measuring error is up to ±0.004 in (±0.1 mm) |
| Measuring Resolution | Selectable 0.01 mm, 0.1 mm (0.001 in, 0.01 in) |
| Units | In/mm |
| Probe Calibration | One-Point Calibration, Two-Point Calibration |
| Measuring Error | ±0.002 in (±0.05 mm) (Low limit to 0.39 in (10 mm)) ±(0.5%H+0.01) mm (0.39 in (10 mm) to high limit) |
| Update Rate | Selectable 4 Hz, 8 Hz, 16 Hz |
| Material Velocity Range | 500 m/s to 9999 m/s (0.0197 in/us to 0.3937 in/us) |
| Stability of the Values | Based on full digital technology, with zero cross measurement technology, the measured value will not be affected by echo intensity, material attenuation coefficient, gain and the height of gate, keep high measurement stability and reliability |
| Repeatability | ±0.002 in (±0.05 mm) |
| Gain | Low, Medium or High for varying test conditions |
| Display Mode | Normal, Minimum or Maximum capture, DIFF/RR% |
| V-Path Correction | Automatic |
| Languages | Selectable Chinese, English, Germany, etc. |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.01 in to 20 in (0.25 mm to 508 mm) Dynamic waveform color change on alarm |
| Power | 2AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5,10,20 minutes of inactivity |
| Operating Temperature | +10 °F to +120 °F (-10 ℃ to +50 ℃) |
