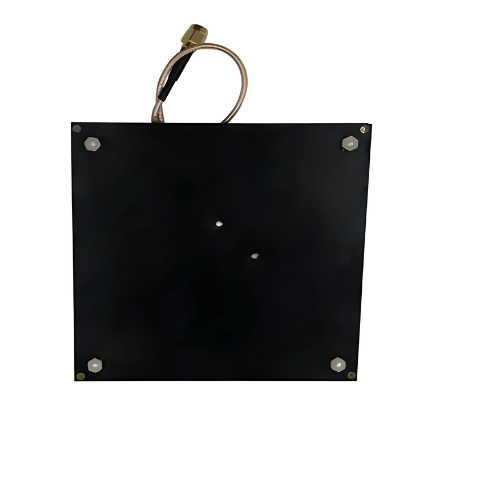

Hospitality Enviro Tech UHF RFID 860-960Mhz Antennas Passive Circular Polarization For Access Control Management Tracking-Circular Polarization

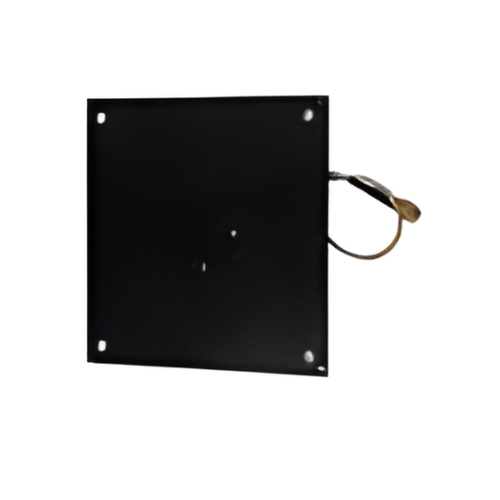

Hospitality Enviro Tech UHF RFID 860-960Mhz Antennas Passive Circular Polarization For Access Control Management Tracking-Circular Polarization - Image 2

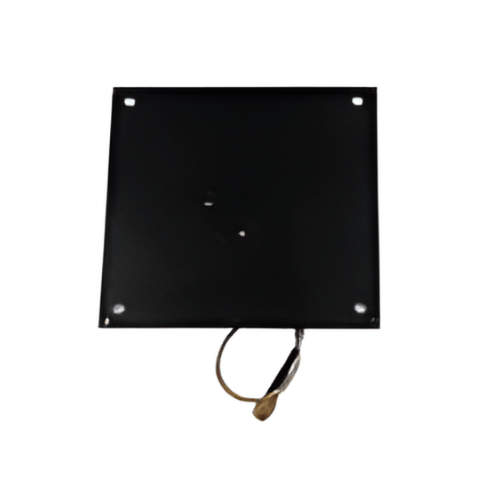

Hospitality Enviro Tech UHF RFID 860-960Mhz Antennas Passive Circular Polarization For Access Control Management Tracking-Circular Polarization - Image 3

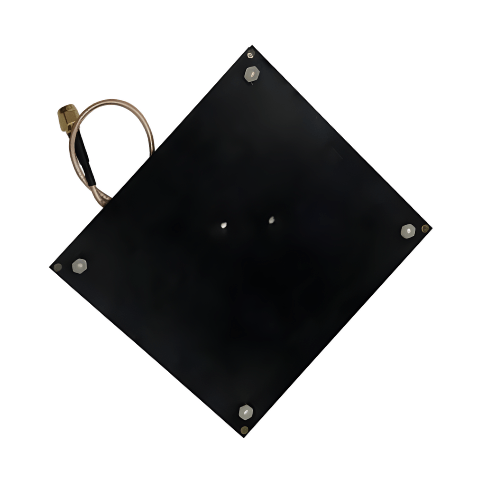

Hospitality Enviro Tech UHF RFID 860-960Mhz Antennas Passive Circular Polarization For Access Control Management Tracking-Circular Polarization - Image 4

Hospitality Enviro Tech UHF RFID 860-960Mhz Antennas Passive Circular Polarization For Access Control Management Tracking-Circular Polarization

UHF RFID 860-960Mhz Antennas with circular polarization, DC ground lightning protection and SMA Female connector for optimal reading

SKU: HETANT-120 Category:

Features

  • Circular polarization
  • DC ground lightning protection
  • Reading range 0.66 ft to 16.4 ft (0.2 m to 5 m)
  • SMA Female connector



Technical Specifications

Frequency 860 MHz to 960MHz
Protocol ISO 18000-6C
Polarization Circular
Air Interface Protocol EPC C1G2
Gain 5 dBi
Voltage Radio Wave Rate ≤ 1.4
F/B Ratio ≥ 20
Impedance 50 Ω
Maximum Power 50 W
Operating Temperature – 40 °F to 158 °F (- 40 °C to 70 ℃)
Dimension 4.72 in x 4.72 in x 0.31 in (120 mm x 120 mm x 8 mm)
Net weight 0.66 lb (0.3 kg)
