Overview

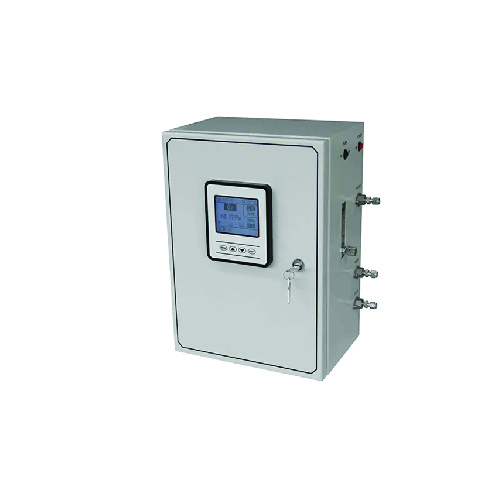

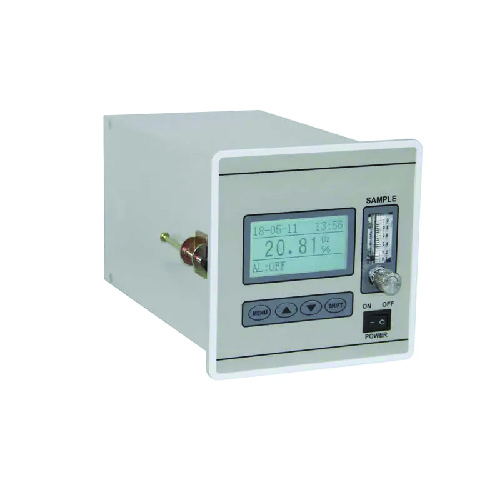

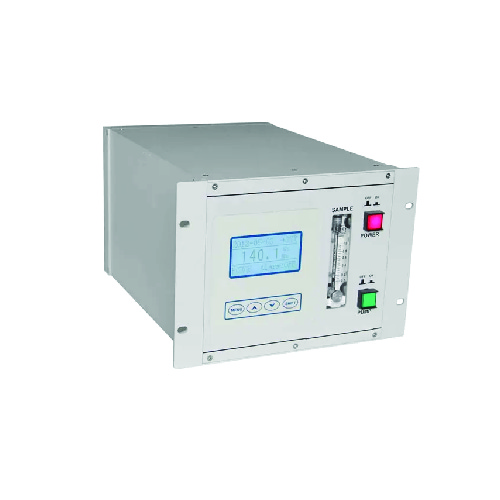

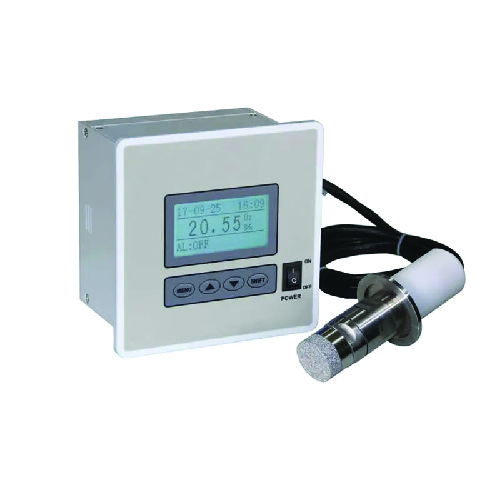

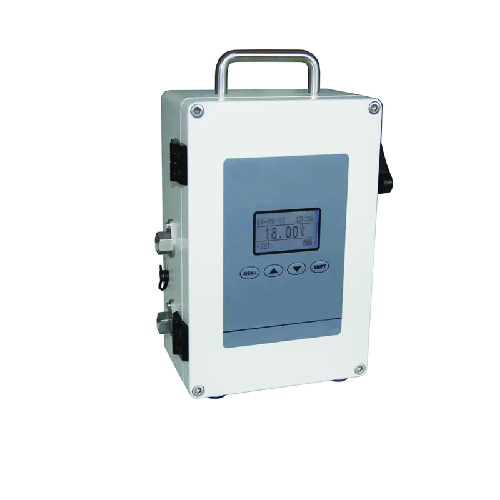

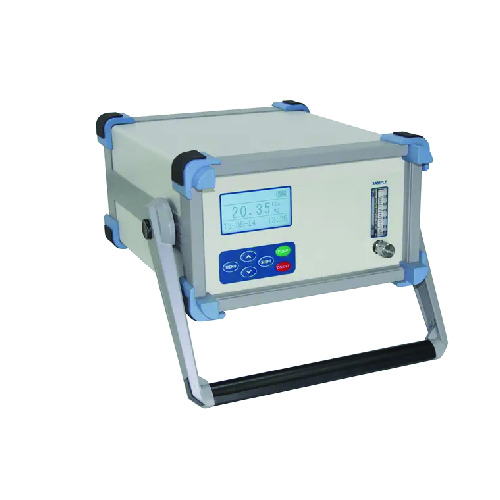

Hospitality Enviro Tech trace portable oxygen gas detector is ideal for the continuous measurement of gas mixtures in applications that demand heavy monitoring of gas environments. A full color back light display shows the oxygen content data relayed by a precision electrochemical sensor in real time with compensation for temperature and barometric pressure variations. Two fully programmable alarms with built-in delay enable the user to exert more control on processes.
Features
- Provides precision reading with rapid response time
- Five auto-ranging measurement scales available
- Perfect for high precision oxygen detection
- Housing provides easy connection to stainless steel glove boxes
- Flow through housing with Swagelok fittings
Technical Specifications
| Measuring ranges | 0 ppm to 10 ppm, 0 ppm to 100 ppm, 0 ppm to 1000 ppm, 0% to 1%, 0% to 25% |
| Accuracy | 1% full scale range |
| Repeatability | 0.5% full scale |
| Display | Large color screen with backlight |
| Response time | 10 s (T 90) |
| Alarms | High / low programmable limits with delay |
| Power input | 100 V AC to 240 V AC |
| Longevity | 17 months to 25 months |
| Recommended gas flow | 0.5 SCFH to 2 SCFH (standard cubic feet per hrs) |
| Humidity | 0% to 100% non-condensing |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Dimensions | 3.34 in x 3.77 in x 3.77 in (85 mm x 96 mm x 96 mm) |
| Weight | 2 lb (90 g) |
