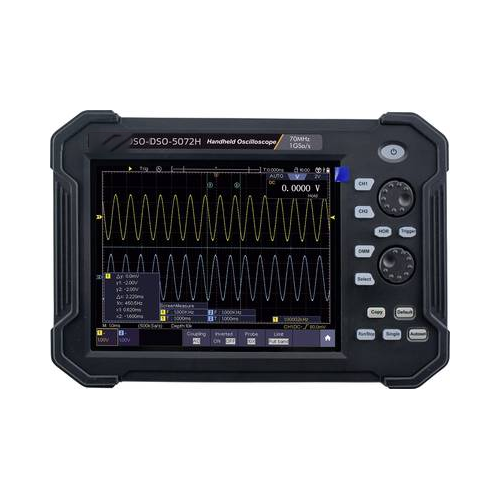

| Display Type |
8 in (203.2 mm) Color LCD Display |
| Display Resolution |
800 Horizontal x 600 Vertical Pixels |
| Display Color |
65536 Colors, TFT |
| Bandwidth |
100 MHz |
| Vertical Resolution (A/D) |
8-Bit |
| Channel |
2 |
| Waveform Refresh Rate |
45,000 wfms/s |
| Real-Time Sampling Rate (Two Channels) |
500 MSa/s |
| Real-Time Sampling Rate (Single Channel) |
1 GSa/s |
| Input Coupling |
DC, AC, Ground |
| Input Resistance |
1 MΩ±2%, in parallel with 15 pF±5 pF |
| Probe Attenuation Coefficient |
0.001 X to 1000 X, step by 1-2-5 system |
| Maximum Input Voltage |
400 V (DC+AC Peak Value) |
| Horizontal Scanning Range (S/Div) |
2 ns/Div to 1000 s/Div |
| Vertical Sensitivity (Volt/Div) Range |
1 mV/Div to 10 V/Div |
| Analog Bandwidth |
120 MHz |
| DC Gain Accuracy |
1 mV, ±4%, ≥2 mV, ±3% |
| Maximum Storage Depth |
40 M Points (Single Channel) |
| Time Base Accuracy |
Maximum ±10 ppm (Ambient Temperature Is 77 ºF (+25 ºC)) |
| Trigger Type |
Edge, Video, Pulse Width, Slope, Runt, Over Amplitude (Windows Trigger), Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN (Optional) |
| Decoding Type |
I2C, SPI, RS232, CAN |
| Trigger Method |
Automatic, Normal, Single |
| Video Trigger |
Signal System Support any field frequency or line frequency NTSC, PAL and SECAM broadcasting system |
| Measuring |
Cursor Measurement Voltage Difference Between Cursors (△V), Time Difference Between Cursors (△T), Time Difference Between Cursors & Voltage Difference (△T&△V), Automatic Cursor |

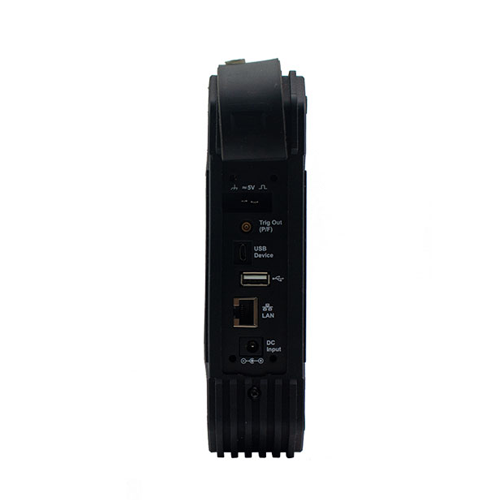

| Communication Interface |
USB Host, USB Device; Trig Out (Pass/Fail); LAN Interface |
| Power Consumption |
<15 W |
| Multimeter Digital Display |
4 Digits (Maximum display is 19999) |
| Maximum Input DC Voltage |
1000 V |
| Maximum Input AC Voltage |
750 V (Effective Value) |
| Impedance |
200 Ω: ±(0.8%+10digit) to 2MΩ: ±(0.5%+3digit) |
| Battery |
7.4 V, 8000 mAh (lasts about 5 hours when fully charged) |
| Operating Temperature |
32 ℉ to 104 ℉ (0 ºC to 40 ºC) |
| Storage Temperature |
-4 ℉ to 140 ℉ (-20 ºC to 60 ºC) |
| Relative Humidity |
≤ 90% |
| Operating Altitude |
118,110.24 in (300,000 mm) |
| Non-Operating Altitude |
590,561.68 in (1,500,000 mm) |
| Cooling Method |
Fan Cooling |
| Dimension (WHD) |
13.39 in × 6.97 in × 3.54 in (340 mm × 177 mm × 90 mm) |
