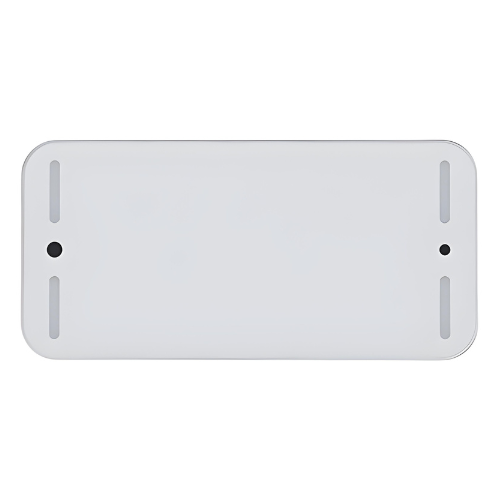

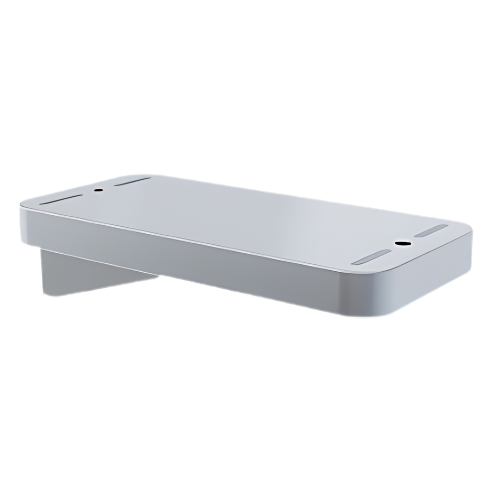

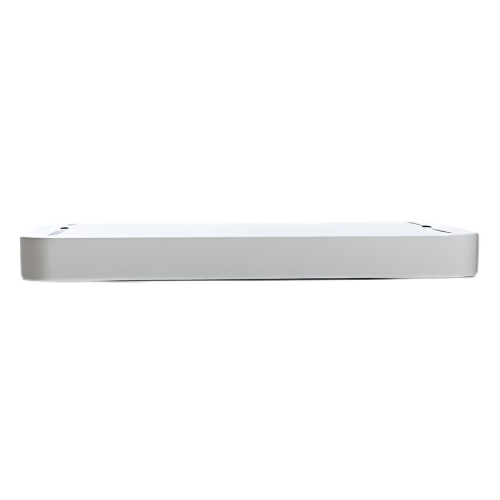

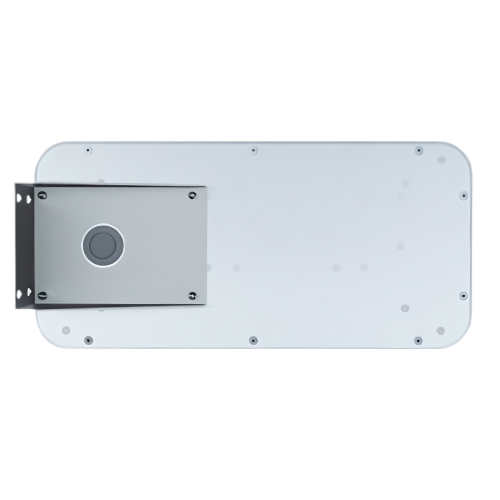

Hospitality Enviro Tech Top Mounted UHF RFID Portal With Accurate Positioning Anti-Interference UHF Gate Reader With Linux OS 4.1.15
Hospitality Enviro Tech Top Mounted UHF RFID Portal With Accurate Positioning Anti-Interference UHF Gate Reader With Linux OS 4.1.15 - Image 2
Hospitality Enviro Tech Top Mounted UHF RFID Portal With Accurate Positioning Anti-Interference UHF Gate Reader With Linux OS 4.1.15 - Image 3
Hospitality Enviro Tech Top Mounted UHF RFID Portal With Accurate Positioning Anti-Interference UHF Gate Reader With Linux OS 4.1.15 - Image 4

Hospitality Enviro Tech Top Mounted UHF RFID Portal With Accurate Positioning Anti-Interference UHF Gate Reader With Linux OS 4.1.15

Top-mounted UHF RFID portal with accurate positioning and anti-interference capabilities, running on Linux OS 4.1.15. Ideal for logistics, featuring ISO 18000-6C protocol, adjustable output power (8-33 dBm), and efficient 45W power dissipation. Constructed from aluminum and acrylic, it supports RS-232(DB9) and RJ45 interfaces. Suitable for installation heights of 9.84 to 16.40 ft. Withstands -4°F to 140°F in 10%-95% RH environments. Dimensions: 17.32 x 8.26 x 1.57 in; weight: 16.53 lbs. Frequency range: 902-928 MHz.

SKU: HETPRT-127 Category:

Technical Specifications

Protocol ISO 18000 6C
Material Aluminum, acrylic
Installation Mode Top mounted or side mounted
Power Dissipation About 45 W
Communication Interface RS 232(DB9), RJ45
Output Power 8 dbm  to 33 dbm (adjustable)
Power Supply AC 220 V ± 10 % 47 to 63 Hz
Humidness 10 % to 95 % RH no condensation
Installation Height 9.84 ft to 16.40 ft (3 m to 5 m)
Operating Temperature -4 °F to 140 °F (-20 ℃ to 60 ℃)
Storage Temperature -22 °F to 158 °F (-30 °C to 70 °C)
Frequency Range 902 MHz to 928 MHz
Size 17.32 in x 8.26 in x 1.57 in (440 mm × 210 mm × 40 mm)
Weight 16.53 lbs (7.5 kg)
