Overview
Hospitality Enviro Tech Thickness Meter Coating is a magnetic thickness method, can be nondestructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on non magnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.) B.eddy current thickness method, can be nondestructively measuring non-magnetic metal substrate ( such as: aluminum, copper, stainless steel ) of non-conductive coating thickness ( such as: paint, powder, plastic, rubber, enamel, enamel, coating etc.
Features

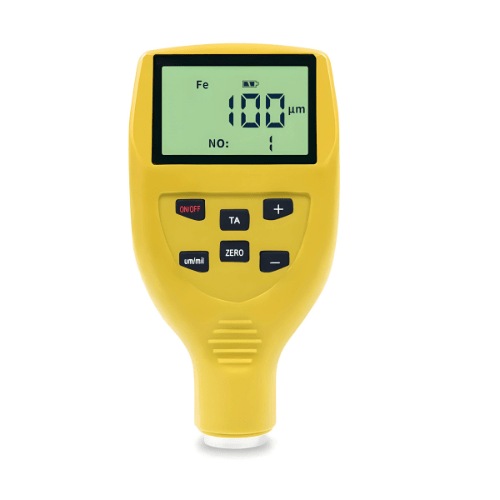

- Large LCD display with backlight
- Large capacity data storage

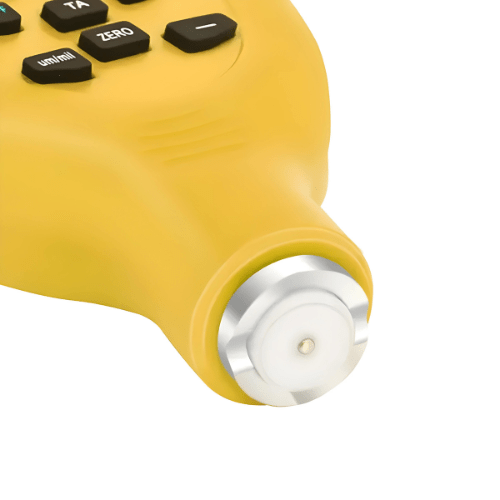

- High precision probe

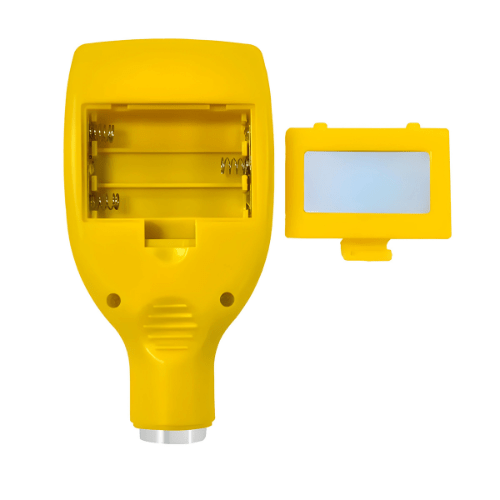

- Battery cover
- Anti slip design
- Automatic identification of substrate
Technical Specifications
| Measuring Range | 0 μm to 2000μm / 3000μm |
| Using Environment | 32°F to 122°F (0℃ to 50℃) 20%RH to 90%RH |
| The Thinnest Matrix | 0.11 in (0.3 mm) |
| Measurement Accuracy | ± 2%H + 1.5μm |
| Resolution Ratio | 0.1μm / 1μm |
| Minimum Matrix | 0.7 in x 0.5 in (18 mm x 15 mm) |
| Size | 4.9 in x 2.5 in x 1.1 in (126 mm x 64 mm x 28 mm) |
| Weight | 0.23 lb. (106 g) |
