Overview

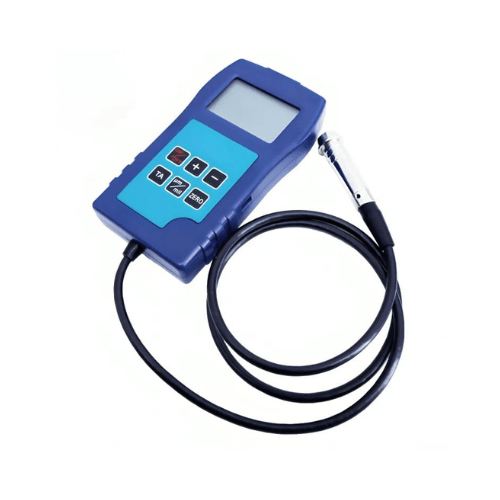

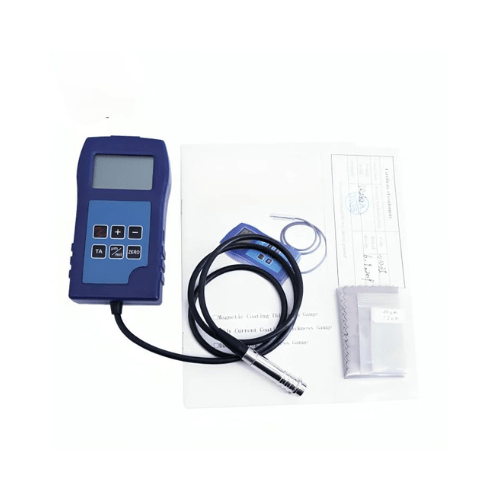

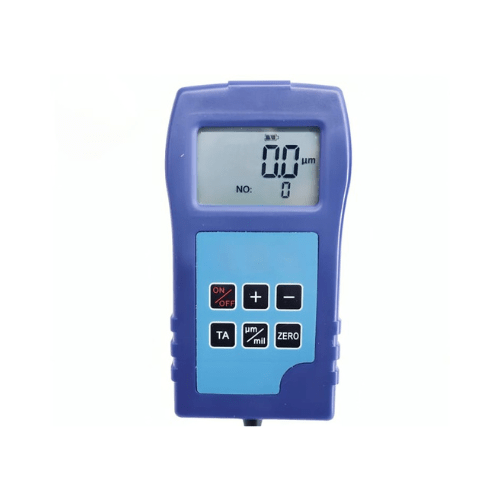

Hospitality Enviro Tech thickness gauge galvanized is non magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) N probes measure the thickness of non magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
Features
- Can store the new data in 99 groups
- Single and continuous mode
- Metric / imperial system selectable
- Separate Type can provide several type probe
- Integral Type suitable for single hand operation
- Manual or automatic shut down
- Auto memory of calibration value
- Operation process have buzzing reminder
- USB data output and RS 232 data output
- Provide “Bluetooth and data output” choice
Technical Specifications
| Operating Principle | Magnetic induction / eddy current (F / NF) |
| Measuring Range | 0 to 1250 um |
| Resolution | 0.1 um |
| Minimum Measuring Area | 0.2 in (6 mm) |
| Minimum Sample Thickness | 0.11 in (0.3 mm) |
| Accuracy | ± 1 to 3% n |
| Battery Indicator | Low battery indicator |
| Operating Conditions | Temperature 32°F to 104°F Temperature (0°C to 40°C) Relative humidity: 10 to 90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM 4) battery |
| Dimensions | 4.9 in x 2.5 in x 1.3 in 126 mm x 65 mm x 35 mm) |
| Weight | 0.17 lb (81 g) |
