Overview

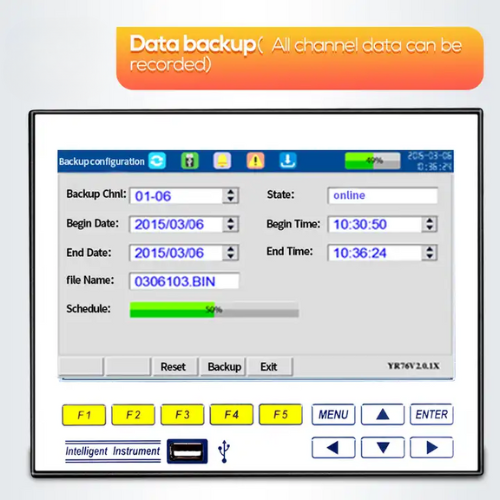

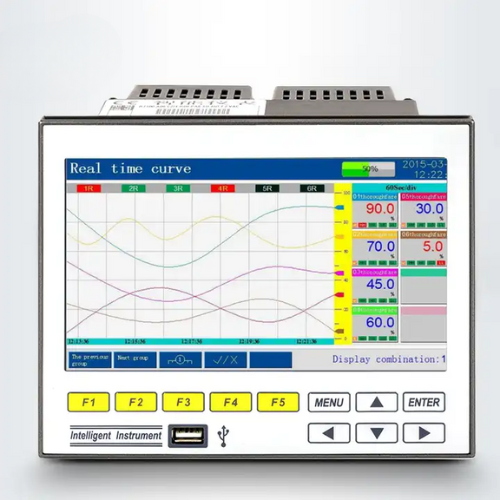

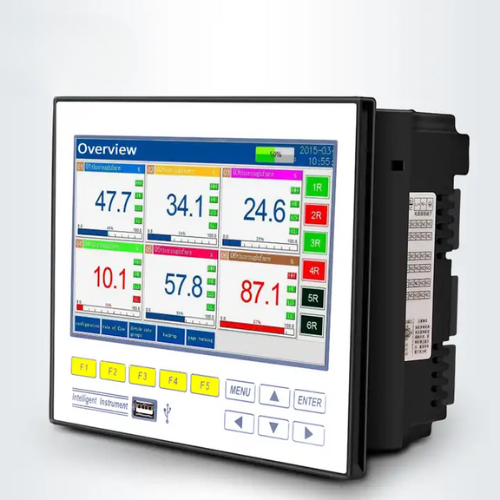

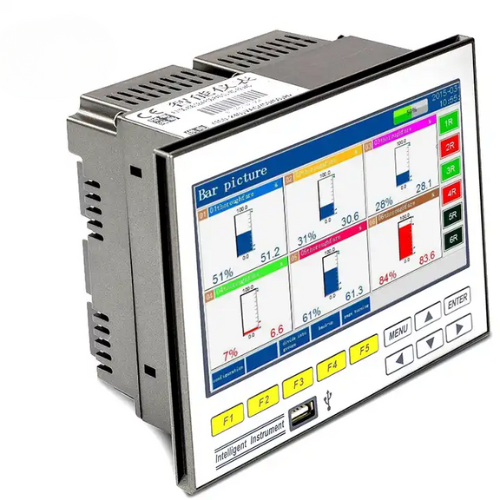

Hospitality Enviro Tech thermistor temperature pressure data logger is color paperless recorder for tft true color liquid crystal display, completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature, liquid level, pressure, voltage, current, flow, vibration frequency input; adopt modularized structure to output alarm, sensor auxiliary power supply, forwarding, printing, communication and other functions. Measurement data can be displayed in a variety of types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular chart memory, alarm state display, etc. curves and data can also be printed by small printer through rs232 poritid also provides the function of viewing data of year, month, day, hour, minute, and second. The recorder can be configured with opc server, Scada system and other professional software, using modbus-rtu communication protocol through RS 485 port. Historical data can be directly downloaded through the u disk, plug and play, convenient and flexible. the data analysis software supported by pc can print the data into curves and output them in excel format for further analysis.
Features
- Transfer data
- Auto alarm Supports 16 relay outputs
- Set upper and lower limits for alarms Top of Form
- Auto alarm Supports 16 relay outputs
- Set upper and lower limits for alarms
Technical Specifications
| Screen | 7 in true-color TFT LCD |
| Accuracy | Real time display ± 0.2% F.S
Recall accuracy ± 0.2% F.S |
| Processor | High performance arm Cortex-M3 32-bit RISC core can be used to collect, record, display and alarm multiple signals at the same time |
| Memory module | Large capacity parallel NAND FLASH flash chips are used to store historical data, and serial FRAM storage chips are used to store key parameters such as configuration parameters |

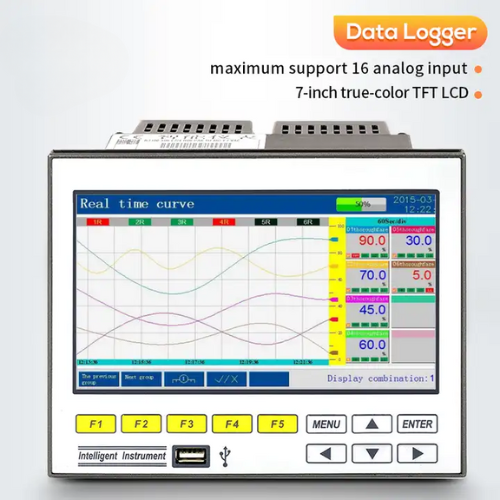

| Input specification | fully isolated universal input, maximum support 16 analog input |
| Voltage input | 0 V to 5 V, 1 V to 5 V, 0 mV to 20 mV, 0 mV to 100 mV |
| Resistor input | Res (0 Ω to 400 Ω) |
| Thermal resistance | T100, Cu50, G53, Cu100, BA1, BA2 (three-wire resistance balance, lead resistance < 10 Ω) |
| Current input | 0 mA to 10 mA 4mA to 20 mA 0 mA to 20 mA |
| Distribution output | up to 3 sets of transmitters are supported for isolated distribution 24 VDC, each group of distribution ≤ 60mA, support other specifications of isolated distribution |
| Recording capacity | 64 MB or 128 MB or 1922 MB or 248MB (flash capacity optional) |
| Data backup and storage | support USB 1.1 USB 2.0 USB disk |
| Power supply | 100 VAC or 240 VAC (rated 220 VAC) 50 Hz or 60HZ AC power supply, 24 VDC |
| Relative humidity | 0 RH or 85 RH |
| Altitude | <2000 m |
| Working temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Net weight | 3.30 lb (1.5 kg) |
