Overview

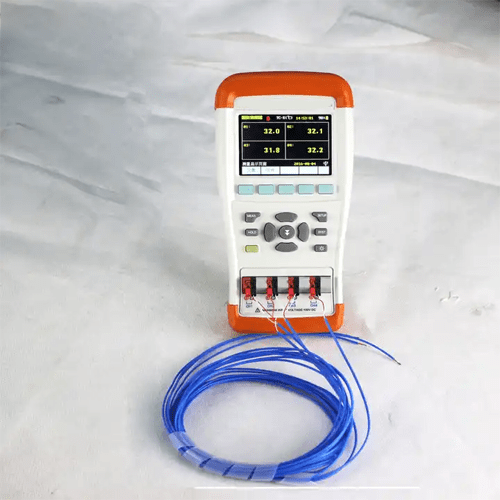

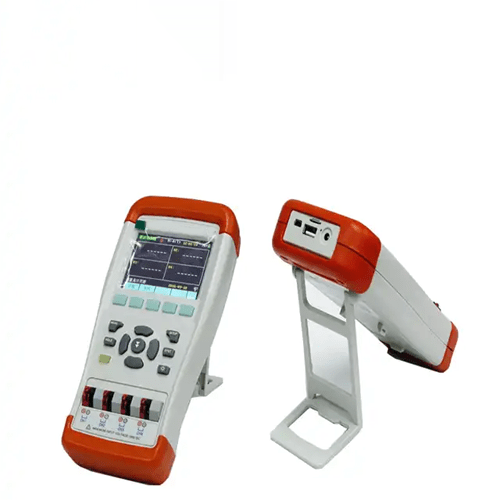

Hospitality Enviro Tech temperature thermocouple data logger is a handheld multi-channel temperature tester controlled by an ARM microprocessor. It adopts multi-channel parallel testing and simultaneously collects alarms and communicates with 8 channels of temperature. Compatible with a variety of temperature sensors, fast response, stable data, and has a broken couple detection function. Using the most advanced testing principle, the temperature testing resolution can reach 0.1℃. JK808 handheld multi-channel temperature tester has wide adaptability and supports K or N or E or J or T or R or S or B thermocouples. Test range from -328 °F to 2372 °F (-200℃ to 1800℃). The operation is simple and convenient. The instrument is well compatible with large-capacity storage and has strong PC communication capabilities. The instrument is equipped with a USB interface and provides free communication software. Data collection, analysis and printing can be easily realized through PC software. It adopts a sturdy and anti-vibration shell, which can work in harsh environments. Fully isolated digital and analog signals, safe and reliable. It is with U disk interface and supports real-time data storage.
Features
- TFT true color LCD, Chinese and English fonts
- Fast or mid or slow three-level scanning speed
- Cold junction compensation

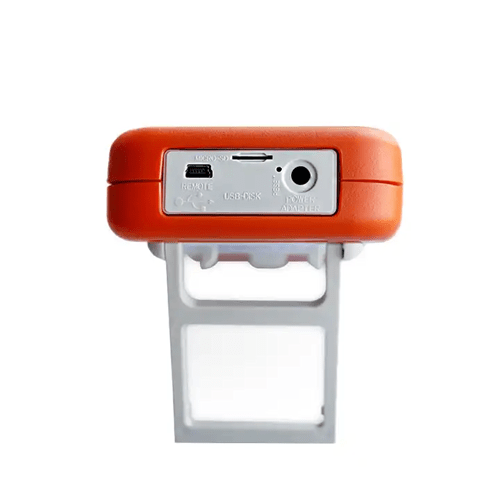

- The standard USB disk interface, support mass storage devices
- The standard Mini USB interface
- Specified channel scan
- The standard data acquisition software
- 4 V lithium battery
Technical Specifications
| Thermo element | J or K or T or E or S or N or B |
| Input Voltage | 100 V to 240 V ,50 Hz or 60 Hz |
| Basic Accuracy | 0.2% 33.8 °F (1 ℃) |
| Measurement range | -328 °F to 2372 °F (-200 ℃ to 1300 ℃) |

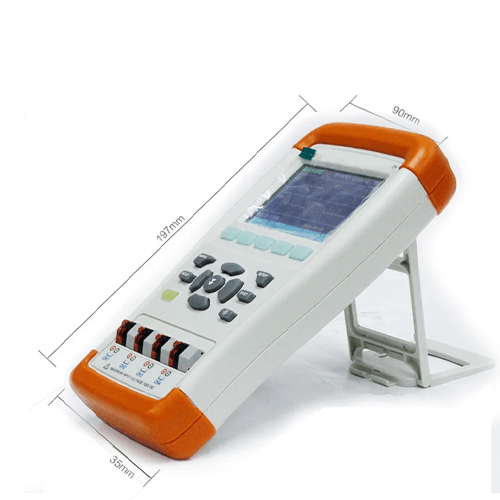

| Size (mm) | 3.58 in x 7.63 in x 1.55 in (91 mm x 194 mm x 39.5 mm) |
| Net weight | 10.58 oz (300 g) |
