Overview

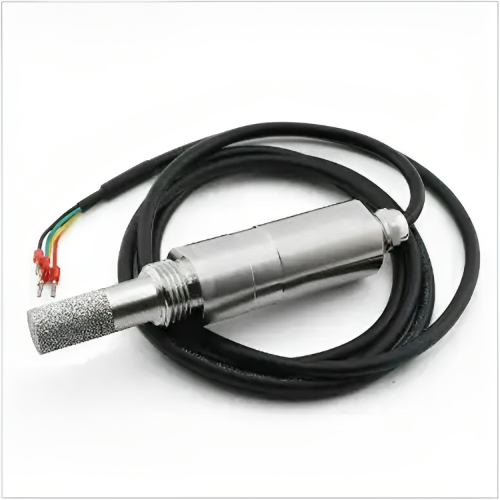

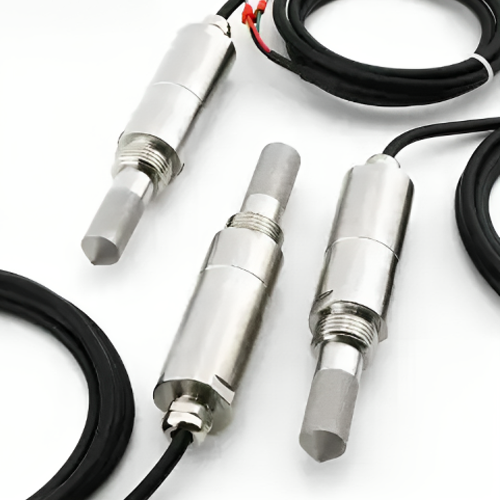

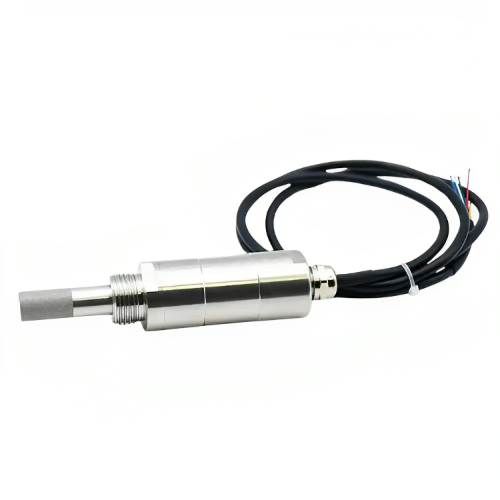

Hospitality Enviro Tech temperature and humidity sensor probe, with its compact design and durable stainless-steel housing, provides accurate and reliable measurement data. Its highly integrated features allow it to easily integrate into various measurement tasks. The product supports analog and digital Modbus RTU outputs and accurate measurement data for dew point, temperature, and humidity. It can seamlessly integrate with PLCs, HMIs, DCSs, and various configuration software.
Features
- High pressure resistant
- Antipollution
- Self-calibration
Technical Specifications
| Current | DC 4.5 V to 30 V |
| Humidity Accuracy | ±1.5% RH (0% RH to 80% RH), 77 °F (25 ℃) |
| Power | <0.1 W |
| Long-term stability | <1% RH, <32.18 °F (0.1 ℃) |
| Measurement range | -104 °F to 176 °F (-40 °C to 80 °C), 0 to 100% RH |
| Dew point range | -76 °F to 140 °F (-60 ℃ to 60 ℃) |
| Communication interface | RS 485, MODBUS RTU |
| Optional | 4 mA to 20 mA (RL ≤500 Ω), 0 V to 5 V, 0 V to 10 V (RL ≥10 KΩ) |
| Records | 65,000 records |
| Software | with Smart Logger professional data management and analysis software |
| Communication band rate | 1200, 2400, 4800, 9600, 19200, 115200 (can be set), 9600 pbs default |
| Byte format | 8 data bits, 1 stop bit, no calibration |
| Temperature Accuracy | ±32.18 °F (±0.1 ℃) 68 °F to 140 °F (20 ℃ to 60 ℃) |
