Features
- High accuracy inductive pickup

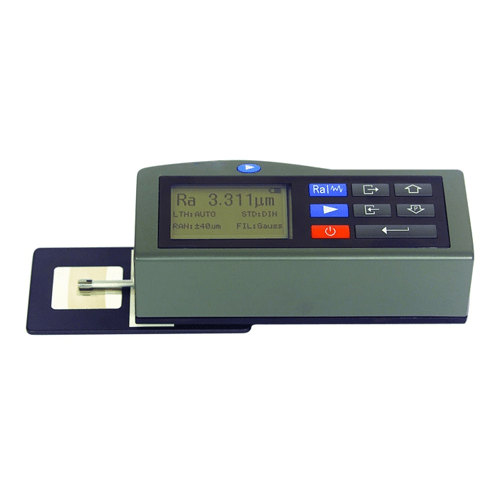

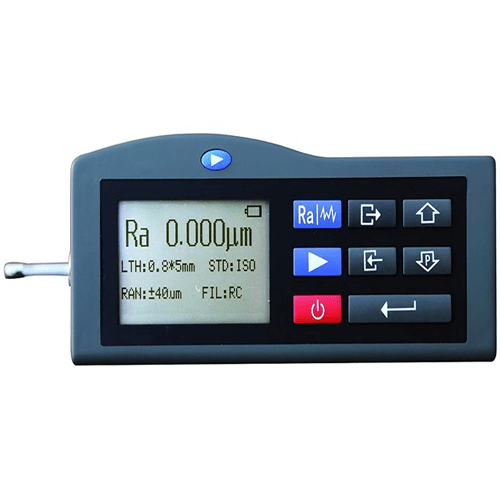

- Easy operation manual and large LCD display with backlight

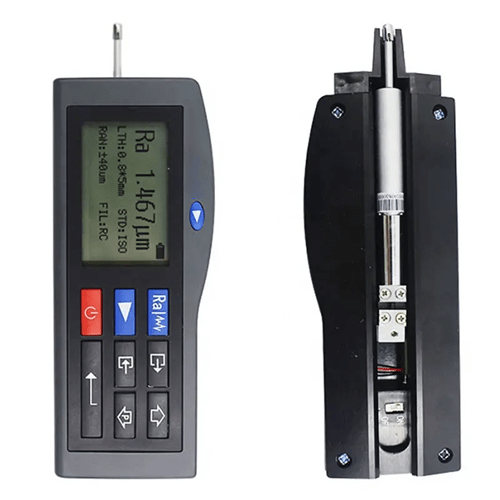

- Pickup stylus position indicator
- Transfer to PC via RS232 with advanced PC Software TIME Surf for more analyzing management
- Connected with printer to print the data and graphs on-site
- Storage and review function for up to 15 groups data and graphs.
- Rk data and graphic are available
Technical Specification
| Display resolution | 0.001 μm |

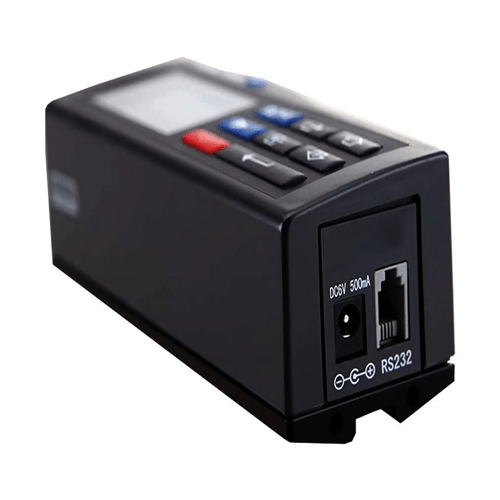

| Data output | RS232 |
| Pickup measuring range | ±20 μm, ±40 μm, ±80 μm |
| Cutoff length (L) | 0.009 in/ 0.03 in/ 0.09 in (0.25 mm / 0.8 mm / 2.5 mm) |
| Digital filter | RC, PC-RC, Gauss, D-P |

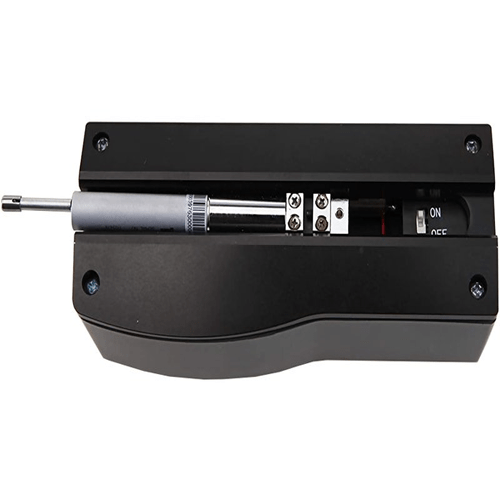

| Pick-up | Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90° |
| Accuracy | ≤±10% |
| Repeatability | ≤6% |
| Power | Li-ion battery rechargeable |
| Dimensions (mm) | 5.5 in x 2.04 in x 1.88 in (140 mm × 52 mm × 48 mm) |
| Weight (g) | 0.97 lb (440 g) |
