Features

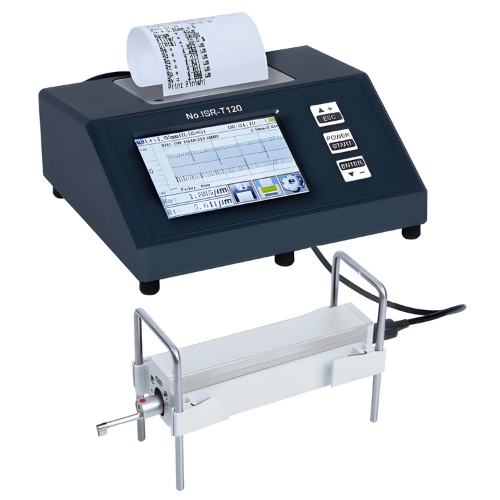

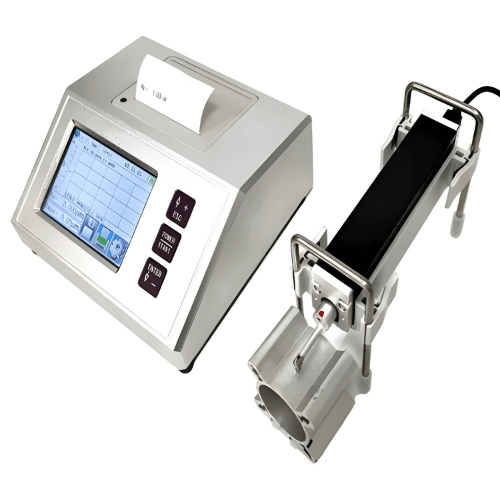

Mechatronics design, embedded printer
Can directly print out measurement results and graphics

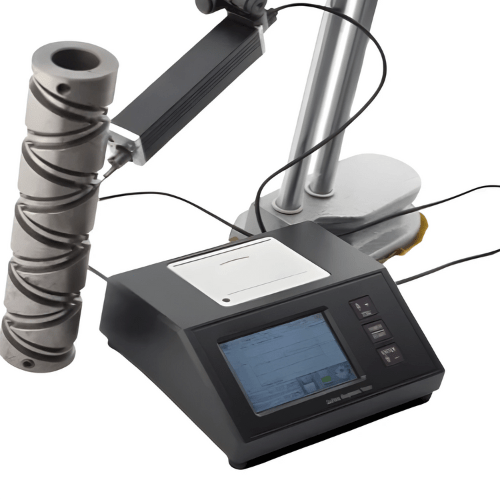

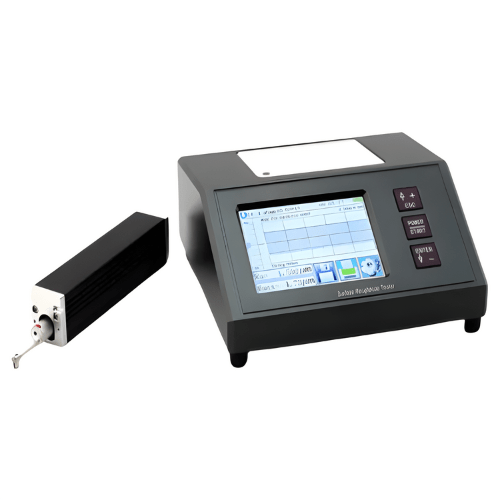

External drive unit, allows more flexible measurement inside
Upward, and other orientation
320 μm large measuring range (enhanced type up to 640 μm, optional)
3.5 in (8.8 cm) color graphic LCD touch screen with backlight
Provide high brightness and wide viewing angle
Easy button and touch screen dual operation
The display information is rich, intuitive
Displays all parameters and graphics
Compatible with ISO, DIN, ANSI, JIS and many national standards
Built-in lithium-ion rechargeable battery, charging control circuit
High capacity, no memory effect
Include charge indicator, charging hint
Continuous working time is more than 50 hrs
Large internal memory: 100 groups of original data
Waveform can be stored
Real-time clock setting and display
Convenient for data recording and storage
With automatic sleep, automatic shutdown
Other power-saving functions
Reliable circuit and software design to prevent the motor stuck
Technical Specification
|
Measuring rang |
640 μm (-320 μm to 320 μm) or 25200 μin (-12600 μin to +12600 μin), 0.6 in (17.5 mm) |
Resolution |
0.002 μm or ±20 μm, 0.004 μm or ±40 μm, 0.008 μm or ±80 μm, 0.02 μm or ±160 μm, 0.040 um or ±320u m |
Parameter
|
Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2 |
Assessed Graphic |
Rmr curve, Roughness curve, Primary Profile, Filter waveform |
Standard |
ISO4287, ANSI b46.1, DIN4768, JISb601 |
Filter |
RC, PC-RC, Gauss, D-P |
Cut off length |
0.011 in, 0.03 in, 0.09 in (0.25 mm, 0.8 mm, 2.5 mm) |
|||||||
|
Assessment length |
Ln = ln × n, n = 1 to 5 |
Sensor |
Measuring principle Differential Inductance Stylus tip Diamond, 90° or cone angle or 5 μmR Force Measuring force <4 mN, Skid force <400 mN, Guide parts hard alloy, skid radius of curvature 1.5 in (40 mm), Measuring speed lr = 0.25, Vt = 0.0053 in (0.135 mm/s), lr = 0.8, Vt = 0.01 in (0. 5 mm/s), lr = 2. 5, Vt = 0.03 in (1 mm/s), Return Vt = 0.03 in (1 mm/s) |
Accurate to |
0.001 μm |
Tolerance |
± (5 nm + 0.1 A), A = Ra standard value of precise specimen |
Repeatability |
≤3% |
Residual Profile |
≤0.010 μm |
Power supply |
Built-in Lithium-ion battery 3600 mAh |
Zoom of height adapter |
1.5 in (40 mm) |
Working Temperature |
-4 ℉ to 104 ℉ (-20 ℃ to 40 ℃) |
Working Humidity |
<90% RH |
Storage Temperature |
-4 ℉ to 104 ℉ (-20 ℃ to 40 ℃) |
Storage Humidity |
<90% RH |
Main unit dimension |
6.10 in x 5.7 in x 2.2 in (155 mm × 145 mm × 58 mm) |
Drive unit dimension |
0.90 in x 1 in x 4.5 in (23 mm × 27 mm × 115 mm) |
weight |
Around 35.2 oz (1000 g) |
|||||||||||||||
