Technical Specifications
| Input Voltage | 230 VAC |
| Output Voltage | 230 VAC ± 10 % |
| Output Current | 15.7 A, 23.9 A, 26.9 A |
| Output Frequency | 50 Hz or 60 Hz |
| Rated Power | 3.6 KW, 5.5 KW, 6.2 KW |
| AC Input | 200 VAC, 230 VAC, 240 VAC |
| Max Charge Current | 100 A |
| Max PV Input Current | 18 A |
| Max PV Input Voltage | 500 VDC |

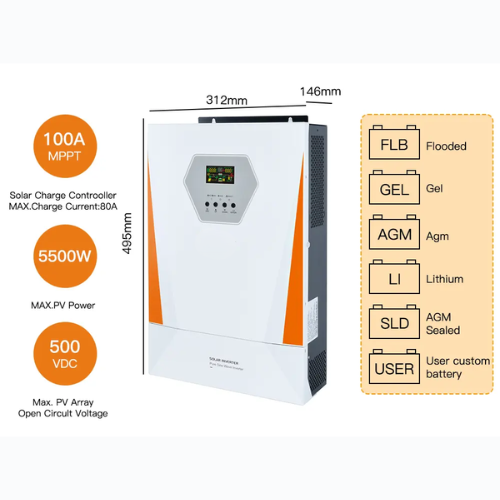

| Size | 19.4 in x 12.2 in x 5.74 in (49.5 cm x 31 cm x 14.6 cm) |
| Weight | 26.45 lbs (12 kg) |
