Overview

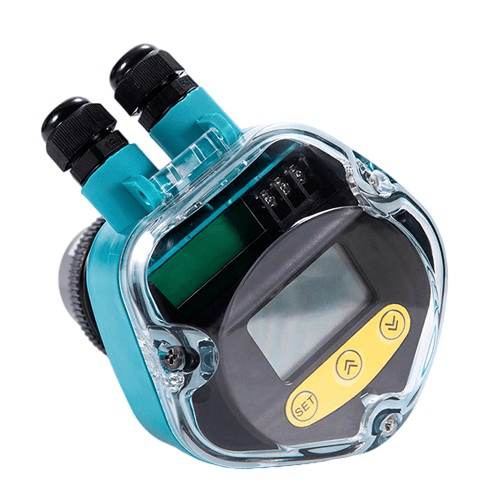

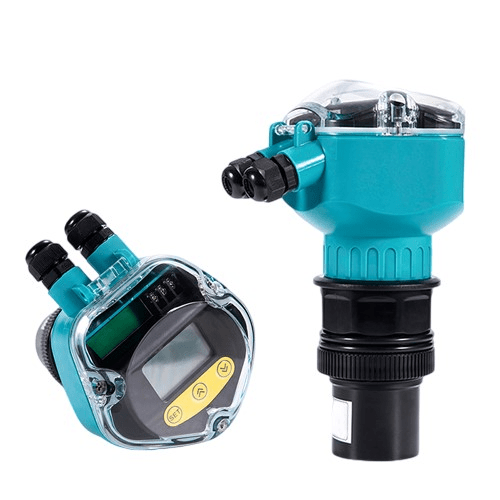

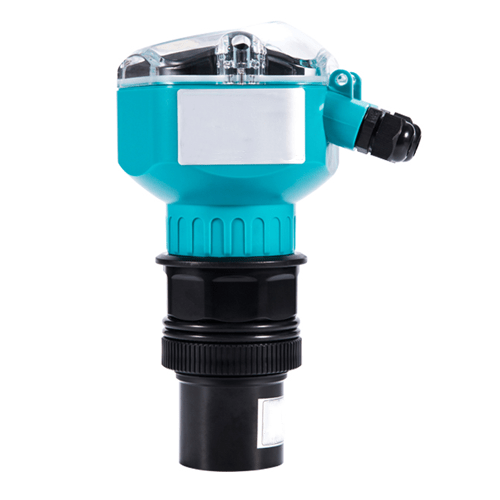

Hospitality Enviro Tech sound distance water tank level is a kind of non-contact, high reliability, high-cost performance, easy installation and maintenance of material level measuring instrument. It doesn’t have to contact medium can meet the requirements of most of the material level measurement. Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium. The product can cooperate with RK600-01 data logger or general recording instrument is used.
Features
- Range of up to 85 ft (60 m)
- Level or material measurement
- Good stability
- Response speed is adjustable
- With LCD display
- Easy Installation
Technical Specifications
| Range | 16.4 ft, 32.8 ft, 49.2 ft, 65.6 ft, 98.4 ft, 131.2 ft,164.04 ft,196.8 ft (5 m, 10 m, 15 m, 20 m, 30 m, 40 m, 50 m, 60 m) |
| Output | 4 mA to 20 mA (2wires), 4 mA to 20 mA (4 wires), RS 485 (4 wires) |
| Supply Voltage | 24 V DC, 220 V AC |
| Accuracy | 0.5% to 1% |
| Resolution | ±3 mm or 0.1% FS (take the maximum value) |
| Display | LCD with English
Control output(optional) Relay AC250V/8 A or 30 V or 5 A |
| Power consumption | 4-wire, without relay of 1.9 W
4-wire, with relay of 3.1 W 2-wire, without relay of 0.72 W |
| Operating Temperature | Probe of 104 °F to 185°F (40 ℃ to +85 ℃), Display unit of 68 °F to 140 °F (20 ℃ to 60 ℃)
Housing material Anti-aging corrosion resistant engineering plastics |
| Process connection | Range of 0 ft to 16.4 ft (0 m to 5 m) is M48× 2
Range of 0 ft to 32.8 ft (0 m to 10 m) isG2 or M60 × 2 Range of 0 ft to 65.6 ft (0 m to 20 m) is G3 or M78 × 2 Range of 0 ft to 98.4 ft (0 m to 30 m) is G3 M78 × 2 Range>98.4 ft (30 m) of M108 × 2 |
