Overview

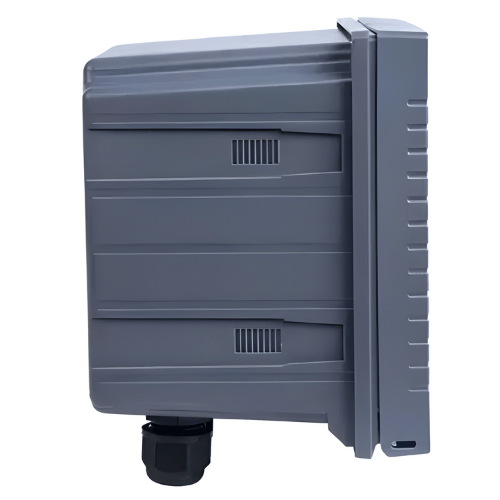

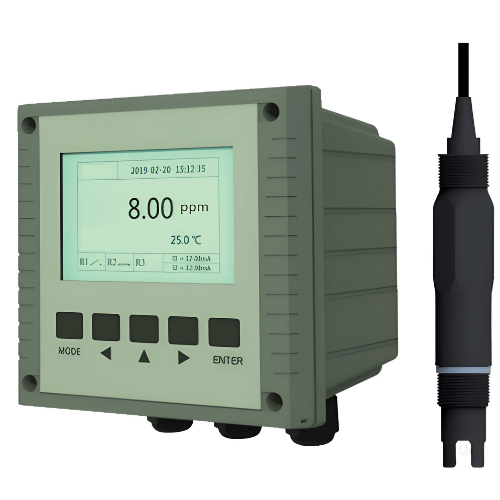

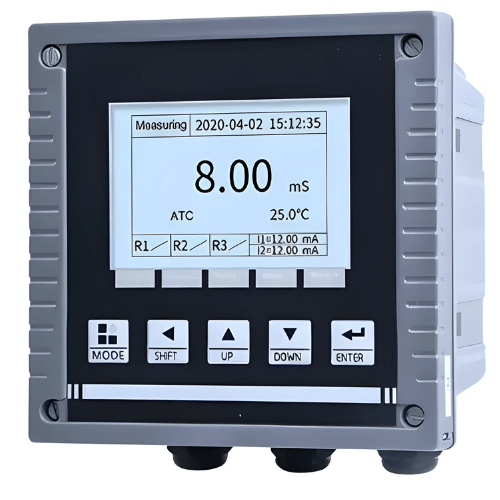

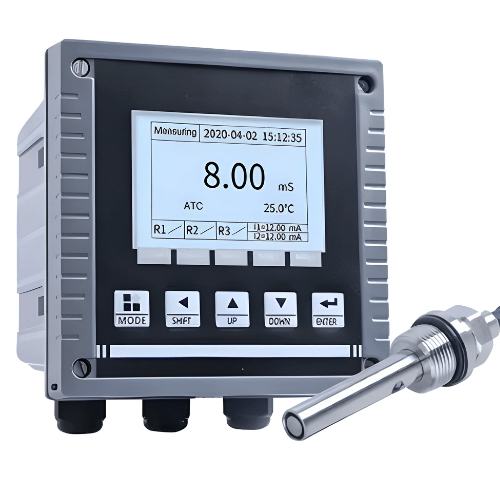

Hospitality Enviro Tech Salinity Meter Tester is an intelligent on-line chemical analysis instrument. It can continuously monitor data and realize remote transmission monitoring and recording. It can also connect to the RS485 interface. You can also easily connect to a computer using the 4 to 20 ma protocol.
Technical Specifications
| Measuring Range | 0 to 10 ppm, 0 to 100 ppm, 0 to 2500 ppm, 0 to 100000 ppm |
| Accuracy | ± 1 % |
| Stability | ± 0.1 PH |
| Power Supply | 12 to 24 V DC |
| Electrode | 0.05 cm-1 Sanitary Grade Electrode, 1 Or 2 in Thread |
| Material | PPS, ABS |
| Signal Output | 4 mA to 20 mA & RS485 Modbus RTU Output |
| Humidity | ≤ 85 % RH |
| Control Output | Relay Control Output, Hi, Lo, On, Off |
| Power Supply | AC 220 V ± 10 % 50 HZ and DC 24 V |
| Temperature Comp | Automatic Programmable Compensation Standard Temperature 32 °F to 140 °F (0 ºC to 60.0 ºC) |
| Environmental Conditions | Temperature 32 °F to 122 °F 0 °C to 50 °C; Humidity ≤85 % RH |
| Panel Cut Out | 3.62 in lb (92 mm X 92 mm) |
