Features
- Original imported sapphire
- Applicable to more 40 scenarios
- Real-time data is not interrupted
- Comprehensive quality assurance
- Ensure smooth installation
- Installation completed in 30 min
- Consider the budget
Technical Specifications
| Measure Range | 0 % to 15 % 0 % to 50 % 0 % to 90 % |
| Min Resolution Ratio | Brix is 0.1 % (Range for 15 %, 0 % to 50 %) Brix is 0.5 % (Range for 90 %) |
| Measurement Accuracy | Brix is ± 0.1 % Brix is ± 0.3 % (Standard) |
| Operating Current | ≤ 200 mA |

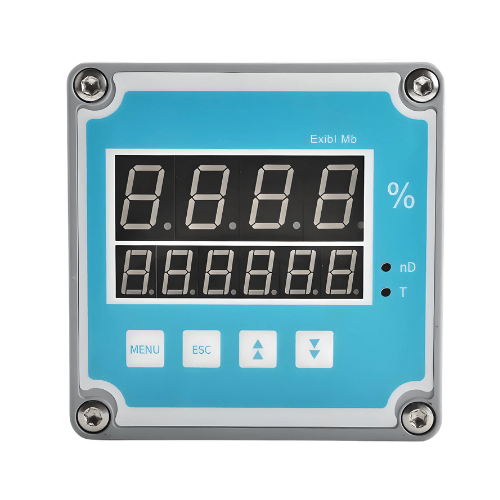

| Display Menu | Refractive index(nD), Brix (%), Temperature (°C) |

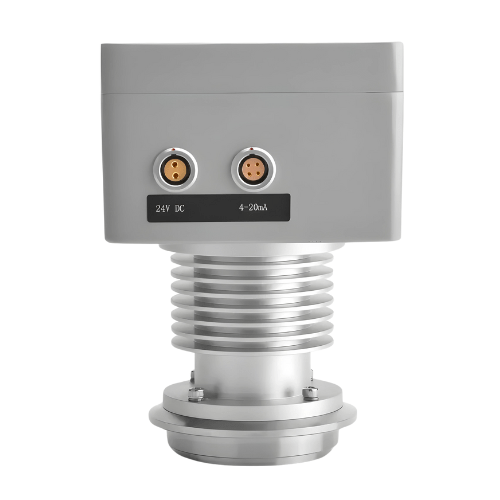

| Output | 4 mA to 20mA + RS485 optional |
| Power | 12 V DC to 24V DC |
| Wetted Parts Material | Prism is sapphire Prism stage is SS304, SS316L |
| Optical Source | LED (The wavelength approximates to D line) |
| Max Pressure | 145.03 PSI (1 MPa) |
| Protection Grade | IP67 |

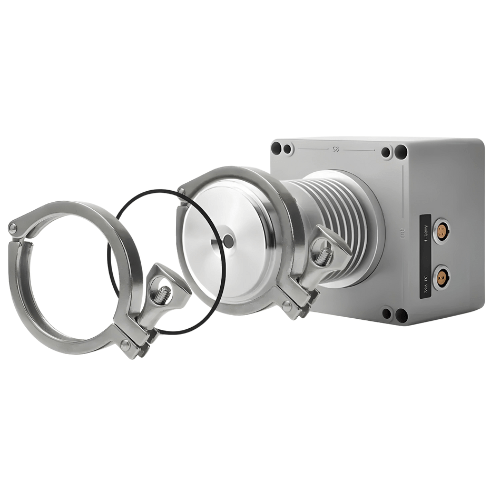

| Process Connection | 3 in (76.2 mm) tri-clamp, other size supply free adaptor |
| High And Low Limit Settings | Buttons can be set |
| Recorder Output Cable | 2.18 yd (2 m), 3.28 yd (3 m), 5.46 yd (5 m), 10.93 yd (10 m) |
| Temperature Sensor | Thin film platinum sensor |
| Measurement Temperature | 32 °F to 185 °F (0 °C to 85 °C) (Automatic Temperature Compensation) |
| Environment Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Instrument Size | 6.88 in x 4.72 in x 4.72 in (175 mm x 120 mm x 120 mm) |
| Weight | 4.4 lb (2 kg) |
