Overview

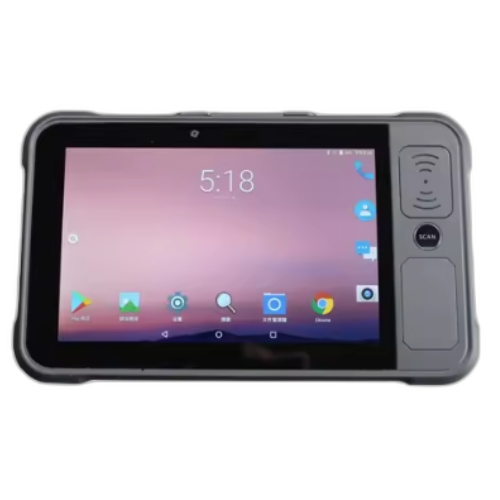

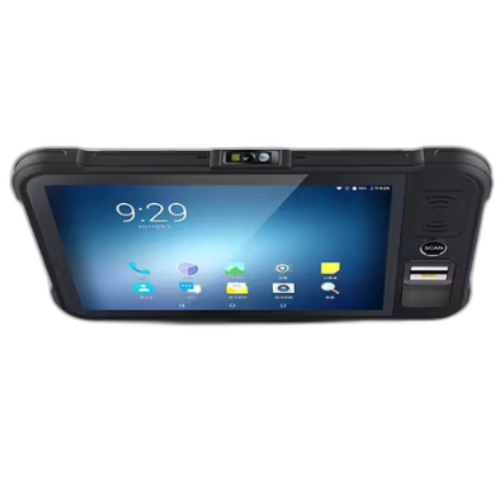

Hospitality Enviro Tech RFID Scanner Rugged Industrial Tablet Android 9.0 NFC Handheld RFID Reader is with abundant functions, is an Android 9.0 rugged tablet. With its powerful Qualcomm CPU, 8 in (20.32 cm) high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID or NFC, Iris and fingerprint recognition, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
Technical Specifications
| UHF Engine | CM2000-1 module based on Impinj Indy R2000 |
| UHF Frequency | 865 MHz to 868 MHz or 920 MHz to 925 MHz or 902 MHz to 928 MHz |
| UHF Protocol | EPC C1 GEN2 or ISO18000-6C |
| UHF Antenna | Circular polarization (default UHF, 3 dBi; UHF with pistol grip, 4 dBi) |
| Power | 1 W (30 dBm, +5 dBm to +30 dBm adjustable) |
| Reading and Writing Range | 82.02 ft (> 25 m) (indoors); 49.21 ft (> 15 m) (open outdoors, Impinj MR6 tag); |
| Reading Rate | > 200 tags per s (circular polarization) |
| NFC|HF Frequency | 13.56 MHz |
| NFC|HF Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| NFC|HF Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| NFC|HF Reading distance | 0.79 in to 1.57 in (20 mm to 40 mm) |
| CPU | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM | 2 GB + 16 GB or 3 GB + 32 GB |
| Octa-core CPU | Cortex-A53 Octa-core 2.5 GHz |
| Octa-core RAM+ROM | 2 GB + 16 GB or 3 GB + 32 GB |
| Octa-core Expansion | Supports up to 128 GB Mirco SD card |
| Operating System | Android 9.0 |
| WLAN | IEEE802.11 a/b/g/n, 2.4G or 5G dual-band, internal antenna |
| WWAN (Europe, Asia) | 2G: B3/B5/B8 3G: CDMA EVDO: BC0; TD-SCDMA: B34/B39; WCDMA: B1/B5/B8 4G: TDD-LTE: B38/B39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B20 |
| WWAN (America) | 3G: B2/B4/B5 4G: B2/B4/B5/B7/B12/B13/B17/B28b |
| Bluetooth | Bluetooth 4.2/4.1 + HS/4.0/3.0 + HS/2.1 + EDR |
| GNSS | GPS or AGPS, GLONASS, BeiDou, internal antenna |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Li-ion, rechargeable, 8000 mAh Standby: over 500 hrs Continuous use: over 10 hrs (depending on user environment) Charging time: 5 hrs to 7 hrs (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB3.0 Type-C, OTG |
| Audio | Speaker and Microphones |
| Sensors | Gravity sensor, light sensor, proximity sensor |
| Display | 8 in (20.32 cm) IPS LTPS 1920 x 1200 or IPS LTPS 1280 x 800 |
| Dimensions | 9.87 in x 5.98 in x 0.59 in (250.8 mm x 152.0 mm x 15.0 mm) (for standard version) |
| Weight | 24.69 oz (700 g) (for standard version) |
