Overview

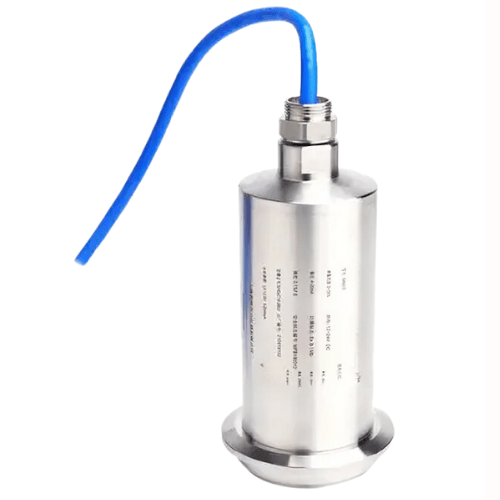

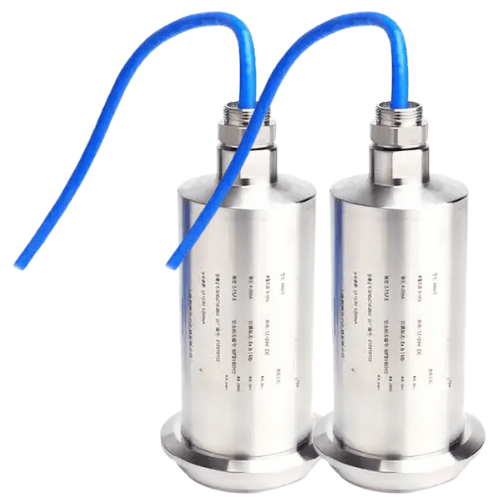

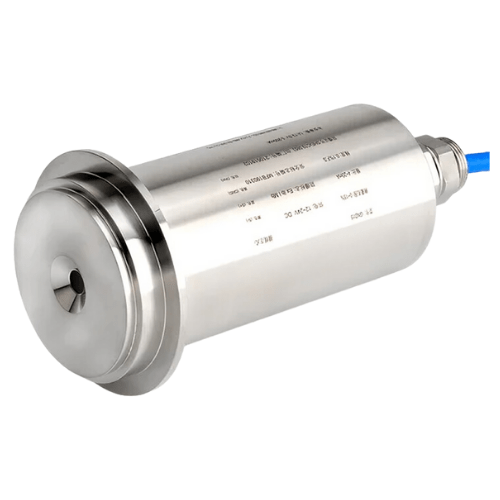

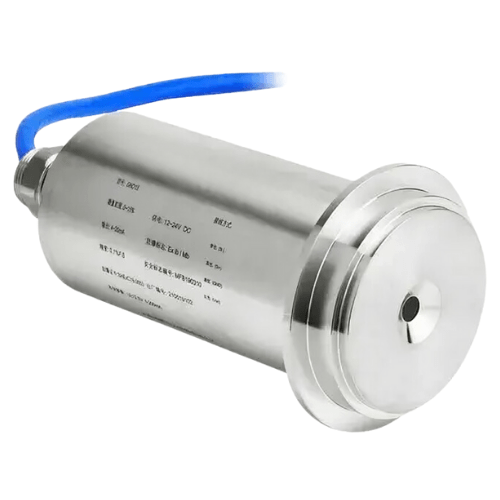

This Refractometer Tester Measuring Instruments Tools has measure parameters of Refractive index (nD), Brix (%), and operating current ≤ 200 mA.
Technical Specifications
| Measure Parameters | Refractive index (nD), Brix (%) |
| Measure Range | 0 % to 15 %, 0 % to 33 %, 0 % to 53 %, 93 % |
| Min Resolution Ratio | Brix of 0.1% (Range for 15%, 33% & 53%)
Brix of 0.5% (Range for 93%) |
| Measurement Accuracy | Brix of ±0.1%, Brix of ±0.3% (standard) |
| Operating Current | ≤200mA |
| Output | 4 mA to 20 mA, 4 mA to 20 mA + RS485 optional |
| Power | 12 V to 24 V DC |
| Process Connection | Our standard is 3 in tri-clamp |
| Wetted Parts Material | Prism of sapphire |
| Protection Grade | IP67 |
| Electrical Connection | Directly cable |
| Cable Length | 6.5 ft,9.8 ft, 16.4 ft, 32.80 ft (2 m, 3 m, 5 m, 10 m) optional |
| Measurement Temperature | 32 °F to 185 °F (0 ℃ to 85 ℃) (Automatic Temperature Compensation) |
| Room Temperature | 32 °F to 104 °F (0℃ to 40℃) |
| Weight | 4.40 lb (2 kg) |
