Features
- SOS function
- Waterproof
- Easy charge with USB
- LED indicators
Technical Specifications
| GSM Module | Quectel EG915U, Cat 1 type |
| GPS Chipset | ZKW AT6558R |
| Charging Voltage | DC 5 V / 1 A |
| Internal Battery | 1000 mAh/3.7 V Lithium-ion battery |
| Full charging time | <2 hrs 10 min |
| Power Consumption | Average 2.4 mA standby current |
| Working hours | 5 min time interval 3 days 11 hrs, standby 16 days |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
| Operating Temperature | -4 oF to 158 oF (-20 ℃ to 70 ℃) |
| Humidity | 5% RH to 95% RH |
| Waterproof | IP 67 (Testing condition: Immersed in 20cm depth water for 30 minutes) |
| LED Light | 2 LED lights indicate GPS/GSM/Power status |
| Button/Switch | 1 SOS button, 1 power button, 1 call button |
| Flash Memory | 4 MB (Buffer storage: GPRS 8000 units, SMS 400 units) |
| Motion Sensor | 3-axis motion sensor (for Tilt/Man down/Fall /Movement detection) |
| Vibration motor | Built-in, vibration reminder incoming call/button press |
| WiFi | 2.4 GHz 802.11 b (Rx) |
| Frequency Band
EU version: for Asia, Europe, Middle East, Africa, Australia countries |
2G GSM: B2/B3/B5/B83G WCDMA: Don’t support
4G FDD-LTE: B1 / B3 / B5 / B7/ B8 / B20 / B28 |
| Frequency Band
LA version: for Latin America and Australian countries |
2G GSM: B2 / B3 / B5 / B83G WCDMA: Don’t support
4G FDD-LTE: B2 / B3 / B4 / B5 / B7 / B8 / B28 /B66 |
| GPS Sensitivity | 167 dBm |
| GPS Start Speed | Cold start 30 sHot start 1 s |
| Position Accuracy | 98.42 in (2500 mm) |

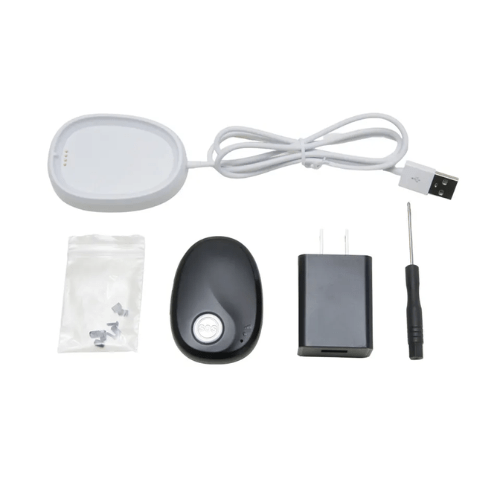

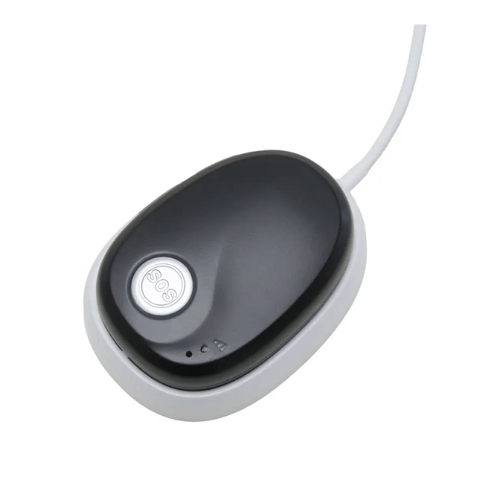

| Charging Cradle | Available, is a standard accessory |
| Charging Port | 1 magnetic contact port for Configuring/Upgrading/Debugging |
| Dimension | 2.55 in x 1.81 in x 0.66 in (65 mm x 46 mm x 17 mm) |
| Weight | 0.10 lb (48 g) |
