Overview

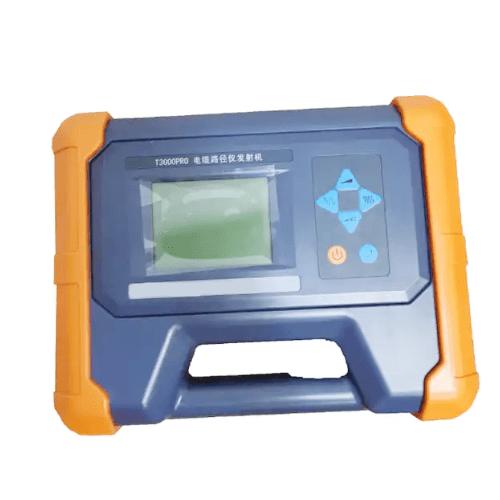

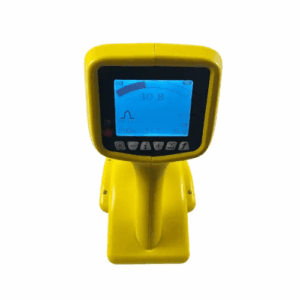

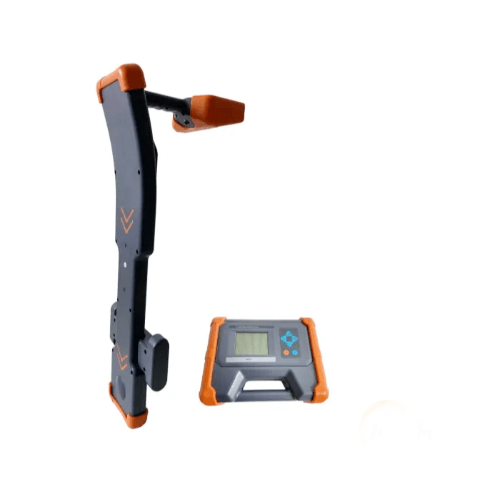

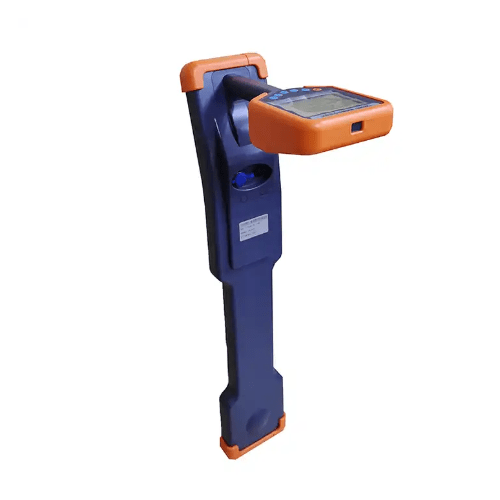

Hospitality Enviro Tech radar locate pipes fault locators are high performance underground metallic pipe locating systems. They consist of a transmitter and a receiver, can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. They can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.
Features
- Compass display for precise pipe position
- Right or wrong indication for accurate tracing
- Depth and current measurement with signal history
- Digital sampling for disturbance resistance

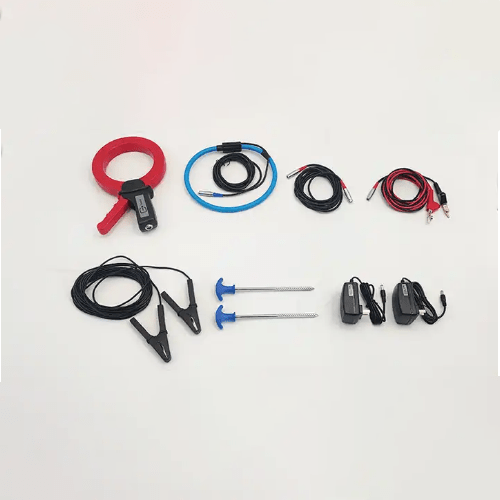

- Cable or pipe ID with flexible Clamp or sensor
- Pipe direction & interference avoidance
- Accurate measurement & power interference inhibition
- Flexible Clamp or sensor for ID
Technical Specifications
| Output mode | Direct Connection output, Clamp Coupling Output (optional), Radiation output, fault location booster (optional). |
| Output Frequency | 640 Hz (complex frequency), 1280 Hz (complex frequency), 10 kHz, 33 kHz, 82 kHz, 197 kHz. |
| Output power | max. 10 W, 10 levels adjustable, auto impedance matching. |
| Direct connection voltage | max. 150 Vpp. |
| HMI | 12.6 in x 9.45 in (320 mm x 240 mm) LCD |
| Power supply | 4 x built-in 18650 Li-on batteries, standard 7.4 V, 6.8 Ah. |
| Cable identification mode | flexible Clamp (optional) intelligent identification and sensor (optional) identification |
| Charger | input AC 100 V to 240 V, 50 Hz or 60 Hz, output DC 8.4 V, 2 A |
| Others | Temperature: 14 °F to 104 °F (-10 ℃ to 40 ℃), humidity 5% to 90%, elevation <2.79 mi (4.5 km) |
| Volume | transmitter 11.02 in x 8.66 in x 3.54 in (280 mm x 220 mm x 90 mm), receiver 26.77 in x 10.91 in x 4.72 in (680 mm x 277 mm x 120 mm) |
| Weight | transmitter 5.07 lb (2.3 kg), receiver 4.40 lb (2 kg) |
