Features
- Easy-to-use infrared thermometer with a bright LED flashlight for fast non-contact detection
- USB charging, intuitive display adjustments, and versatile features for diverse regions
- Storage, auto-shutdown, camera functions, and voice options included

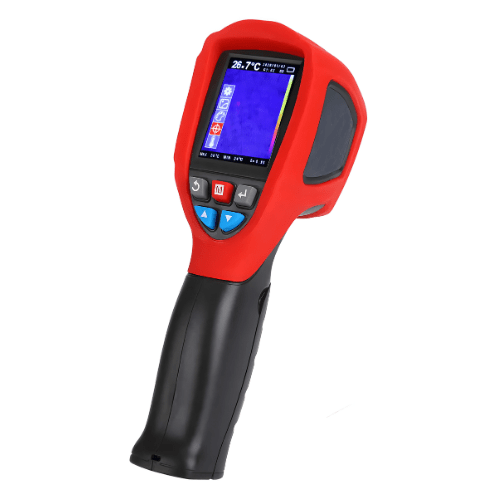

- Infrared thermal imager measures temperature and observes heat distribution
- Real-time detection during high voltage and current operations for preventing malfunctions
Technical Specifications
| Thermal Imaging Resolution | 32 x 32 |
| Enhanced Pixels | 320 pixels x 240 pixels |
| Emissivity | Preset 0.95, adjustable from 0.1 to 0.99 |
| Visible Light Camera | 2 MP |
| Display Mode | Thermal imaging, thermal hybrid, digital camera, edge detection line |
| Color Palette | Iron red, color, black and white |
| Wavelength Range | 8 µm to 14 µm |
| Field Of View (FOV) | 33° |
| Instantaneous Field of view (IFOV) | 18 mrad |
| Thermal imaging Sensitivity | 150 mk |
| Frame Rate | ≤ 9 Hz |
| Save Image Format | Bitmap (BMP) |
| Display Type | 2.4 in (60.96 mm) TFL LCD |
| Display Resolution | 320 pixels x 240 pixels |
| Storage Card | 8 GB mini memory card |
| Automatic Shutdown Time | 3 min without operation, automatic shutdown |
| Battery Continuous Use Time | ≥ 4 h |
| Temperature Range | – 4 °F to 752 °F (- 20 °C to 400 °C) |
| Basic Accuracy | 32 °F to 752 °F (0 °C to 400 °C), ± 1.8% or ± 3.2 °F (± 1.8 °C) – 4 °F to 32 °F (- 20 °C to 0 °C), ± 5 °F (3 °C) |
| Working Temperature | – 14 °F to 113 °F (- 10 °C to 45 °C) |
