Features

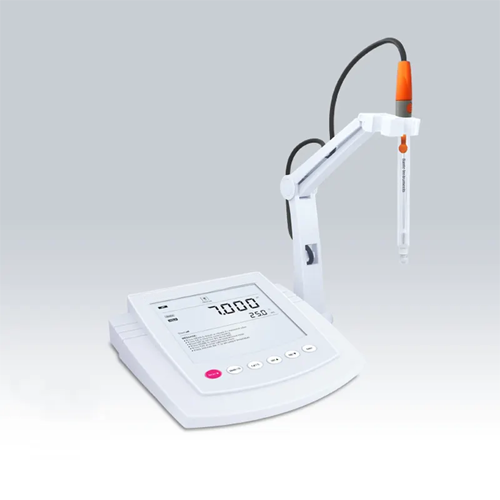

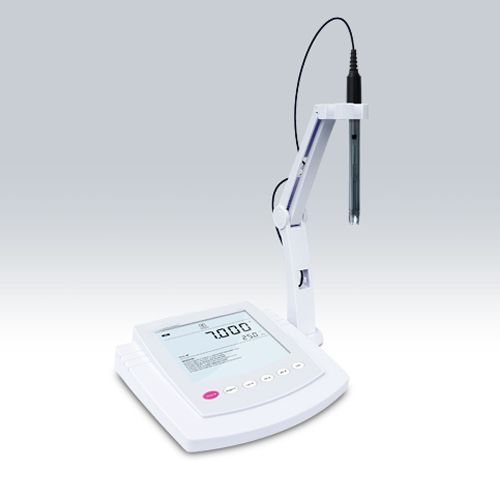

- Multi-parameter bench-top ion meter is equipped with a large backlit LCD display
- 2 to 5 points calibrations including the eight concentration calibration points can be selected
- Automatically recognize ion selective electrodes, does not need to specify the type of ion
- Direct ion concentration readout simplifies the elaborate measurement process
- Selectable multiple concentration units for different measurement requirements
- 1 to 5 points calibrations with auto-buffer recognition
- Selectable pH buffer standards (USA / NIST / DIN) or using the custom calibration solutions
- Automatically calculates and displays electrodes slope that helps you decide whether to replace pH electrode
- Single point offset calibration allows adjusting the displayed value to a known standard
- Relative and absolute millivolt measurements provide accurate ORP readings.
Technical Specifications
| Range | -2.00 pH to 20.000 pH |
| Accuracy | ±0.002 pH |
| Resolution | 0.1 pH, 0.01 pH, 0.001 pH |
| Calibration Points | 1 to 5 points |
| Calibration solutions | USA, NIST< DIN standards |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C) |
| Compensation Mode | Manual or Automatic |
| Range | -1999.9 mV to 1999.9 mV |
| Accuracy | ±0.2 mV |
| Calibration Points | 1 point |
| Calibration Range | ±200 mV |
| Range | 0.001 ppm to 19999 ppm, mg/l, mol/L |
| Accuracy | ±0.5% F.S, ±1% F. S |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 points to 5 points |
| Calibration Solutions | 0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 10 ppm, 100 ppm, 1000 ppm, 10000 ppm, mol/L, mg/L |
| Range | 32 °F to 221 °F (0 °C to 105 °C) |
| Calibration Range | ±14 °F to 212 °F (-10 °C to 100 °C) |
| Temperature units | °F or °C |
| Hold Functions | Manual or Automatic |
| Stability conditions | Low or high |
| Calibration Due | 0 to 31 days |
| Power off | Manual or Automatic (10, 20, 30 minutes) |
| Reset function | yes |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC |
| Display | LCD |
| Power requirements | DC 5 V, using AC adapters, 220 V AC / 50 Hz |
| Dimensions | 8.27 in x 7.40 in x 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | 3.31 lb (1.5 Kg) |
