Overview

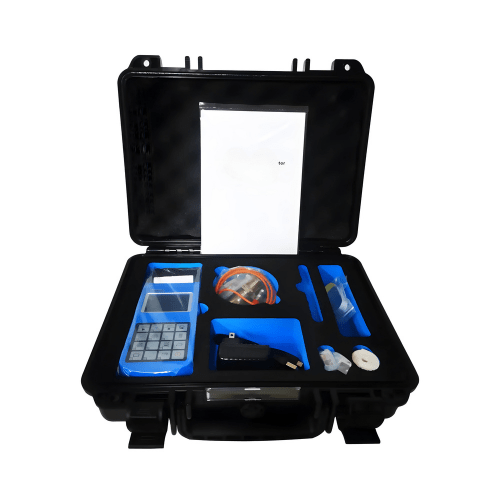

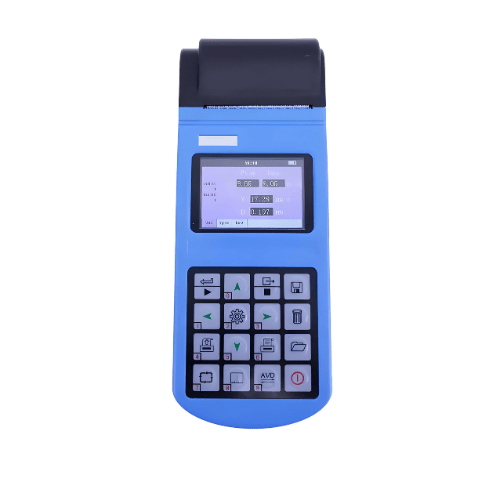

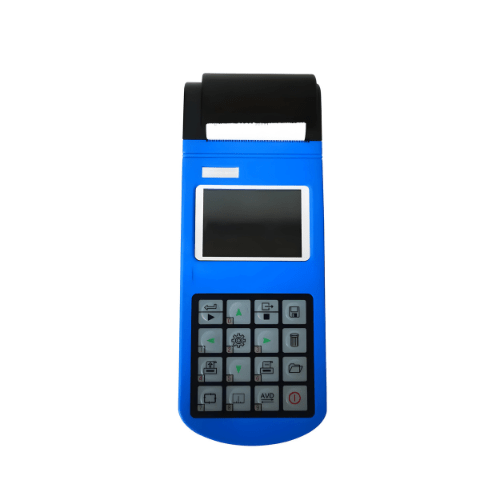

Hospitality Enviro Tech Portable Vibration Meter uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration but also perform simple failure diagnosis. The technical specifications of the tester comply with the requirements of GB 13823.3. It is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Technical Specifications
| Measuring Range | Acceleration: 0.33ft/s2 to 656.17ft/s2 (0.1 m/s2 to 200.0 m/s2) (Peak) |
| Velocity: 0.001 in/s to 15.75 in/s (0.1 mm/s to 400.0 mm/s (RMS) |
|
| Displacement: 0.000039 in to 0.39 in (0.001 to 10.0 mm (Peak – peak) |
|
| Frequency Range | Acceleration: 10Hz to 200 Hz, 10Hz to 500 Hz, 10 Hz to 1KHz, 10 Hz to 10KHz |
| Velocity: 10Hz to 200 Hz, 10Hz to 500 Hz, 10 Hz to 1KHz | |
| Displacement: 100Hz to 200 Hz, 10Hz to 500 Hz | |
| Accuracy | ≤ ± 5% |
| Operating Environment | Temperature: 14 °F to 104 °F (0 C to 40 ℃) Humidity: Below 80% RH |
| Display Screen | Color TFT, 320×240 pixels |
| Battery’s Parameter | l Li battery, Works 40 hours continuously. Charging time: 10 hours. |
| Dimensions | 8.35 in × 3.15 in × 1.26 in (212mm × 80mm × 32mm) |
| Main Body Weight | 0.57 lbs (260 g) |
