Overview

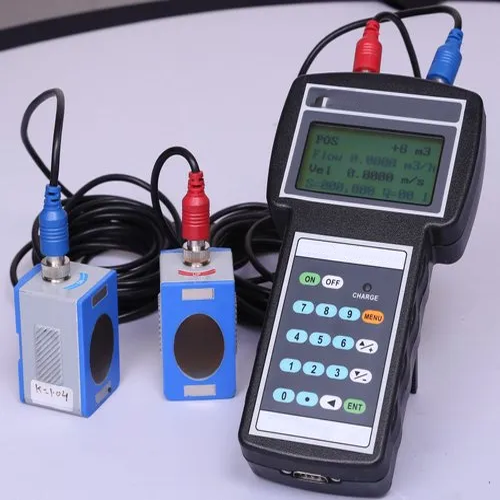

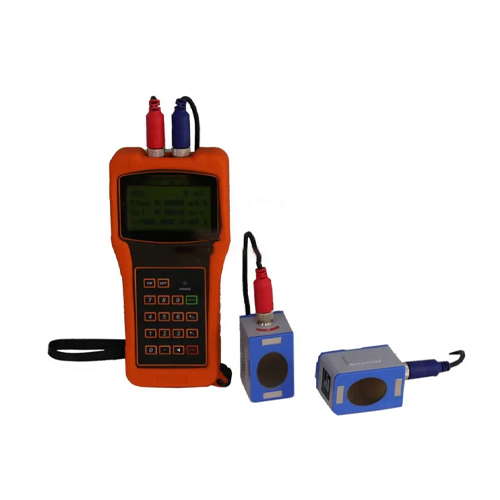

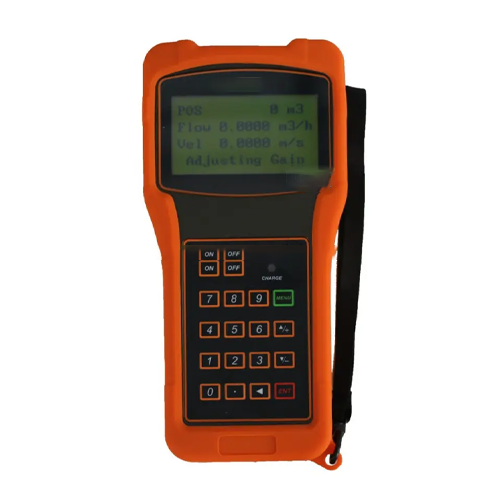

Hospitality Enviro Tech portable ultrasonic flow meter is composed of a digital converter and two clamp-on ultrasonic transducers. It is designed to measure the fluid velocity of a liquid inside a closed conduit. The transducers are a noncontracting, clamp-on type which provides benefits of non-fouling operation and easy installation.
Technical Specifications
| Measuring accuracy | Flowmeter / Calorimeter: better than 1%, water meter: better than 2% |
| Repeatability | Better than 0.2% or 0.5% |
| Velocity | ±0.03 to ±105 ft / s (±0.01 to ±32 m / s) bi-directional |
| Flow type | Water, sea water, industrial water, oil liquid, sewage, and single liquid available for ultrasonic |
| Output interface | OCT, RS232 |
| Battery | 3 AAA Ni-H built-in batteries, when fully charged, it will last over 12 hrs of operation. |
| Power | 90 V AC to 230 V AC for the charger |
| Liquid temperature | 32 °F to 320 °F (0 °C to 160 °C) |
| Pipe size | 0.5 in x 240 in (15 mm x 6 cm) |
