Overview
Hospitality Enviro Tech Portable Temperature Data Logger adopts a high-performance ARM microprocessor, can collect multi-channel temperature data simultaneously, and responds quickly. It has the functions of checking broken thermocouples, high/low beep functions, and communication transmission. 128 channels of temperature data can be extended and are compatible with various temperature sensors. Equipped with a Mini-USB (virtual series port) interface to realize data acquisition, analysis, and printing through standard computer software. Support USB disk storage and real-time sampling data storage. The users can adjust the data for each channel independently.
Feature
- Accurate temperature monitoring
- Portable design for on-the-go data collection
- USB interface for easy data transfer and charging
- Wide temperature range for versatile applications
- High data storage capacity
- User-friendly interface for simple operation
- Real-time data display and recording
- Long battery life for extended usage
- Data analysis and logging software compatibility
- Compact and lightweight for easy handling and transport
- Suitable for various temperature-sensitive environments and industries
Technical Specifications
| Graduation | Thermocouple: J / K / T / E / S / N / B / R |
| Accuracy | 0.2 % + 33.8 °F (1 ºC) |
| Range | – 328 °F to 2372 °F (- 200 °C to 1300 °C) (varying depend on graduation) |
| Resolution | 32.18 °F (0.1 °C) |
| Channel | 8-channel thermocouples Can be expanded to 128 channels |
| Speed | Fast: 100 ms / channel, Medium: 500 ms / channel, Low: 1 s / channel |
| Correction | Error correction for each channel |
| Comparator | High and low beeps |
| Interface | U – disk interface Mini – USB (virtual serial port) |
| Cold Junction Compensation |
Accuracy: 32.9 °F (0.5 ºC) |
| Power Supply (ATL909) |
Input: 100 V to 240 V, 50 Hz / 60 Hz, 0.35 A Output: 9 V 1 A DC |
| Battery Parameters | 8.4 V, Li, 2200 mA rechargeable battery |
| Charging time | Single continuous charging time: Max 300 min |
| Working Time | ≥ 8 hrs |

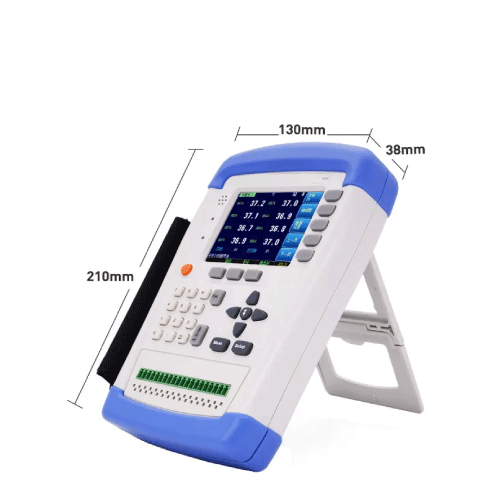

| Size and Weight | 5.12 in x 8.29 in x 1.49 in, (130.23 mm x 210.76 mm x 37.88 mm) 1.43 lb (650 g) |
