Technical Specifications
|
Measuring range |
0 g to 300 g / Nm3 |
| Optional range | 0 g to 200 g / Nm3,0 g to 100g / Nm3,0 g to 50g / Nm3,0 ppm to 1000 ppm, 0 ppm to 100 ppm |
| Light source life | about 30000 hours to 50000 hours |
| Sampling method | positive pressure sampling, negative pressure sampling (optional) |

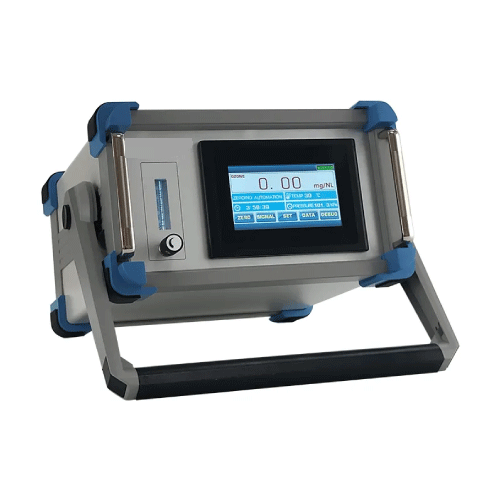

| Display interface | 4.3 in (109.22 mm) touch screen operation interface |
| Content interface | Ozone concentration, temperature and pressure |
| Auxiliary functions | temperature compensation, pressure compensation |
| Display units | g / Nm3, mg / NL %WT, ppm, mg / Nm3 is optional |
| Display resolution | 0.01 g/m3, 0.01 ppm |
| Gas flow rate | 0.5 L ±0.2 L/min |
| Input pressure | ＜100 Kpa (14.50 PSI) |
| Concentration error | maximum of 0.3% FS |
| Linear error | maximum of 0.2% FS |
| Zero-point drift | ＜± 0.3% FS |
| Reaction time | 0.03 seconds of signal, 0.3 seconds of display |
| Ambient temperature | -4 oF to 122 oF (-20 ℃ to 50 ℃) |
| Pipeline interface mode | Quick twist (stainless steel) |
| Series joint sample diameter | 8 (0.31 in x 0.23 in) (8 mm x 6 mm) (optional) |
| Bypass sampling diameter | 6 (0.23 in x 0.15 in) (6 mm x 4 mm) |
| Communication mode | RS-485 |
| Output mode | 4 mA to 20 mA (active) |
| Secondary telecom signal | high alarm point relay telecom signal, low alarm point relay telecom signal |
| Power supply | AC 110 V to 220 V |
| Dimensions | 6.29 in x 10.23 in x 11.81 in (160 mm x 260 mm x 300 mm) |
| Weight | 12.378 lb (5.8 kg) |
