Technical Specifications

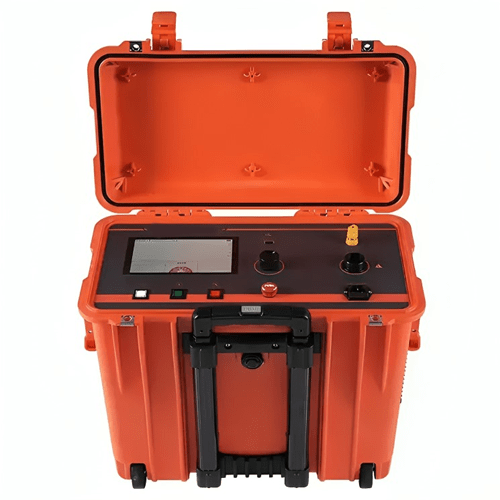

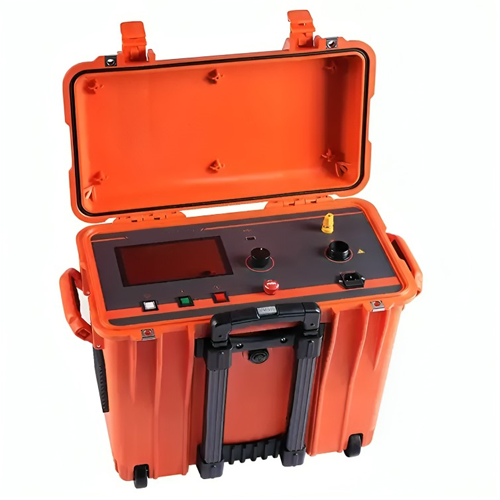

| Structure | Integrated trolley case, no need for external AC booster and arc stabilizer |
| Operation Method | Touch/One-button operation |
| IOT Module | Built-in IOT module, can realize remote interconnection function |
| GPS Module | Built-in GPS/Beidou module, can record the geographic location information of the measuring point |
| Line Insulation Test | Resistance measurement range: 0 MΩ to 10 MΩ Capacitance measurement range: 0 uF to 10 uF |
| Intelligent Diagnosis | AC and DC voltage mixed output, automatically judge the line condition, and recommend the test mode; Voltage output: 0 kV to 10 kV; Current output: 0 mA to 220 mA |
| Low-Impedance AC Location | Test range: 0 kΩ to 5 kΩ Output frequency: 20 Hz Output voltage: AC 0 V to ± 825 V/peak Output current: 0 mA to 220 mA |
| High-Impedance AC Location | Test range: 0 kΩ to 200 kΩ Output frequency: 20 Hz Output voltage: AC 0 kV to ± 5.4 kV/peak, no need to connect a booster Output current: 0 mA to 50 mA |
