Overview

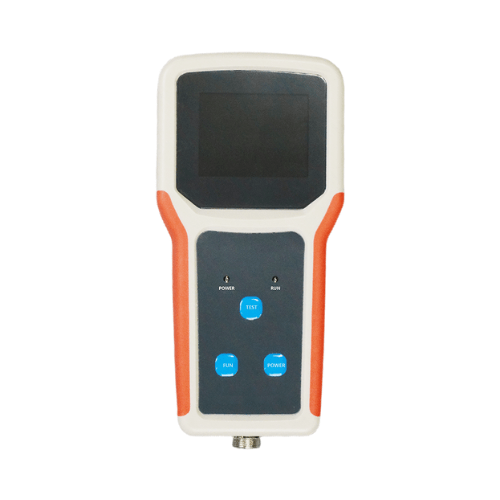

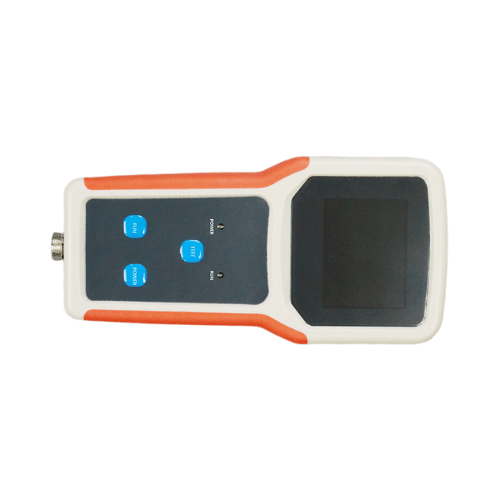

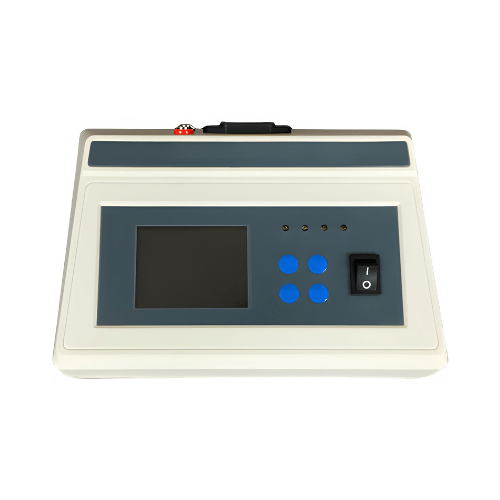

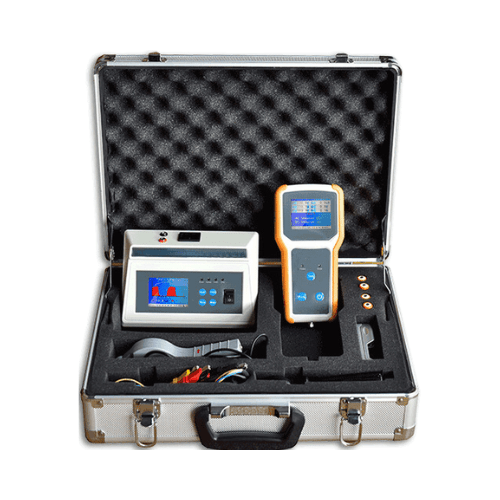

Hospitality Enviro Tech portable grounding fault locator is a high-precision DC fault tester. The device is based on the principle of DC current difference detection and introduces fast FFT transformation technology. Through detailed analysis of the amplitude frequency characteristics of the detection quantity, the contradiction between the safety and sensitivity of DC grounding fault detection is balanced. The equipment can detect various insulation faults, DC mutual leakage faults, and AC leakage faults in DC systems of various voltage levels such as 24 V, 48 V, 110 V, 220 V, etc. The equipment consists of an analysis host, a detector, and a current clamp. For different phenomena, DC square wave current clamp and square wave current clamp can be selected.
Features
- Voltage monitoring range up to 300
- Measures insulation impedance of system to ground
- Measure AC components entering DC system
- Measure and display distributed capacitance
- Detects various ring network faults
- Uses amplitude modulation
- Measures the insulation impedance of each branch
- Equipped with spectral analysis function
- Can be used as high precision ammeter
- Can identify system voltage
Technical Specifications
| Display | TFT, 320 X 240 |
| Insulation resistance measurement range | 0 KΩ to 500 KΩ |
| Insulation resistance measurement resolution | 0.1 KΩ |
| Insulation resistance measurement accuracy | ≤ ± 10 % |
| Number of spectral analysis channels | 1 |
| Spectrum analysis frequency range | 0.125 Hz to 12.5 Hz |
| Frequency resolution | 0.125 Hz |
| Current waveform display cycle | 8 seconds |
| Detectable feeder current range | 0 A to 2 A |
| Current measurement range | -100 mA to +100 mA |
| Current measurement resolution | 0.01 mA |
