Overview

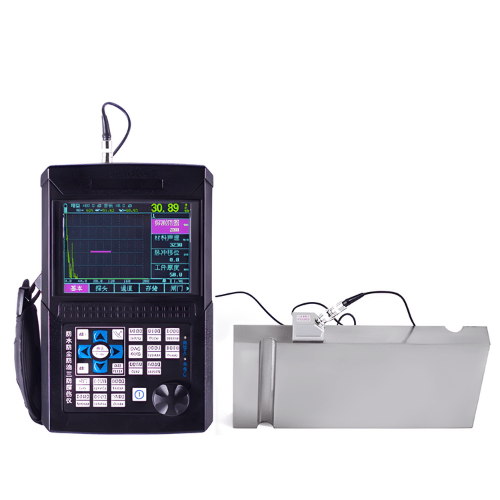

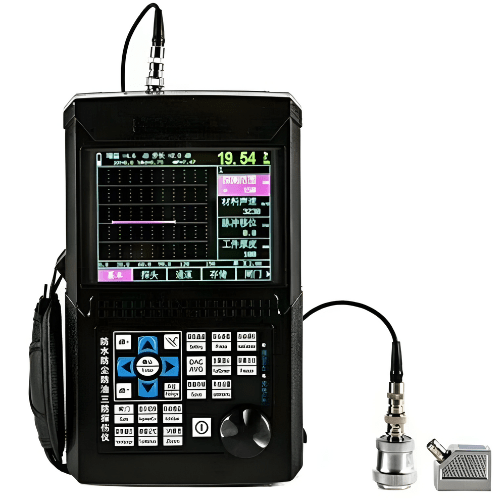

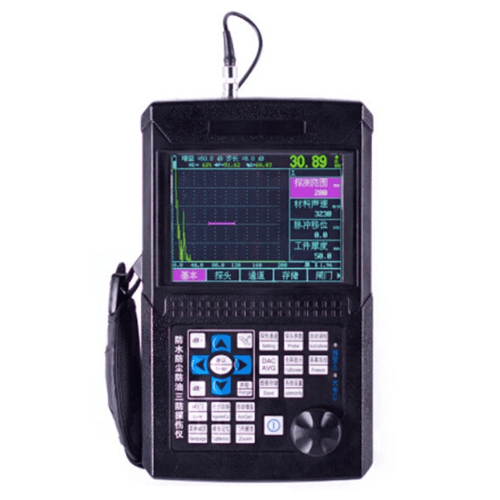

Hospitality Enviro Tech Portable Digital Ultrasonic Flaw Detector can quickly, conveniently, non-destructively, accurately detect, locate, evaluate and diagnose a variety of defects inside the workpieces such as cracks, welds, blowholes, trachoma, inclusions, folding, etc., and is widely used in power, petrochemical, and boilers. Pressure vessel, steel structure, military industry, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.
Technical Specifications
| Material Velocity | 1000 to 9999 |

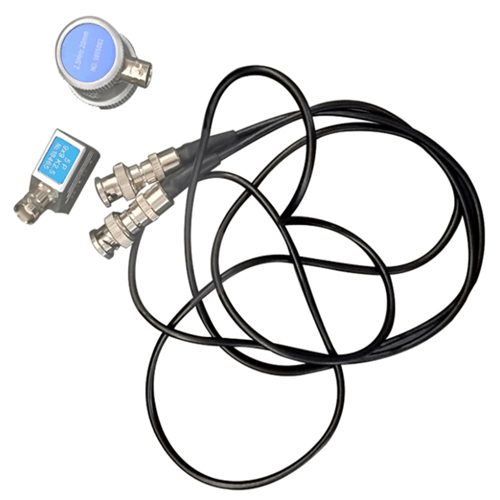

| Standard Configuration | Host, power adapter, straight probe, oblique probe, probe connection cable |
| System Linearity | Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB |
| Optional | Communication software, data cable, test block, probe, probe connection cable |
| Dynamic Range | >=32 dB |
| Display Delay | -20 µs to 3400 µs |
