Overview

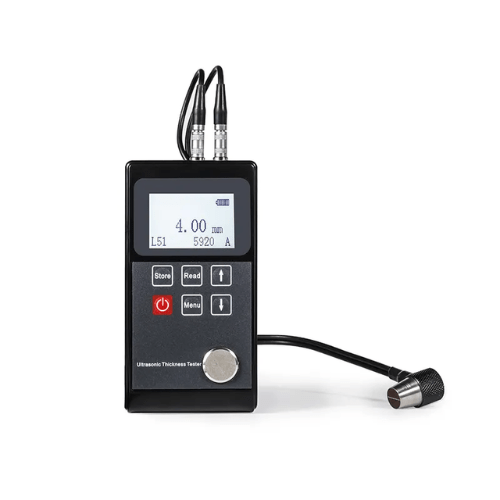

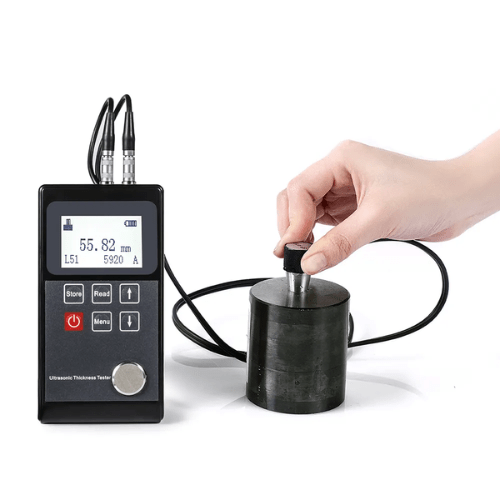

Hospitality Enviro Tech Portable Digital Thickness Gauge is adapted to all kinds of materials which are good conductors of ultrasonic waves, such as metals (steel, cast iron, aluminum, copper etc.), plastic, ceramics, composites, epoxies, glass and etc.
Features
- Rechargeable Li-ion battery

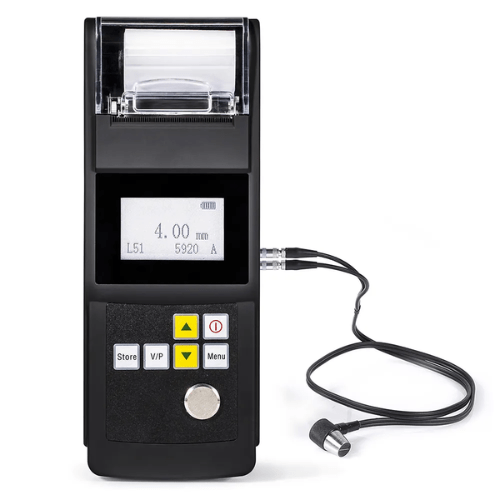

- Built- in thermal printer
- Software available for PC connecting and report
- Integrated with a 0.16 in (4 mm) calibration block
- Two display units: mm and inch
- With coupling indication
- Measuring sound velocity: according to the known thickness of the object, the sound velocity of it can be measured directly
Technical Specifications
| Measuring Range | 0.03 in x 11.8 in (0.7 mm to 300 mm) (depends on the probe & material) |
| Resolution | 0.0004 in (0.01 mm) |
| Accuracy | ±(0.5% H + 0.01 mm), H refers to the thickness of testing piece |
| Velocity Range | 1000 m/s to 9999 m/s |
| Storage | 2000 Groups |
| Power Supply | Rechargeable Li-ion battery |
| Operating Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Dampness | 20% to 90% |
| Dimensions | 9.06 in x 3.39 in x 1.81 in (230 mm × 86 mm × 46 mm) |
| PC Software | Available |
| Weight | 0.88 lb. (400 g) |
