Overview

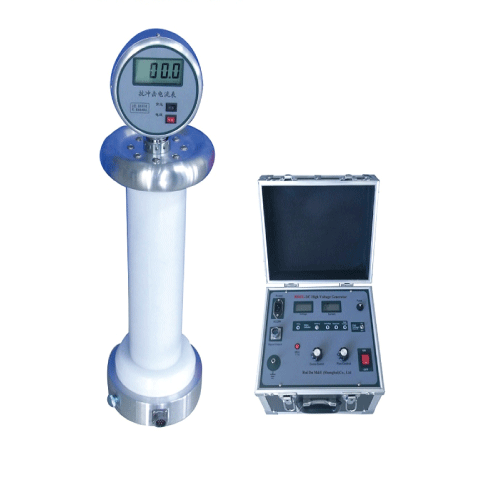

Hospitality Enviro Tech portable DC voltage tester adopts PWM high frequency pulse width modulation technology for closed-loop adjustment, with high voltage stability, small pulsation factor and fast and reliable protection circuit. The display adopts green backlight and wide temperature liquid crystal display, which can clearly display data in strong light and dark. DuPont new filling material is used for high pressure parts, which makes the product performance more stable and reliable. The products are widely used in preventive experiments and scientific research institutes of power generation and power supply departments, power transmission and transformation engineering companies and large-scale factories and mining enterprises as DC high voltage regulated power supply.
Features
- PWM technology for stable, ripple-free adjustment
- Linear voltage regulation <0.1% accuracy
- Accurate voltage and current measurements
- 220 V power supply, low pulsation factor for continuous use
- Solid packaging for high-pressure multiplier
- Convenient arrester test with 75% MOA voltage
- Over-voltage protection, clear display, and safety features
Technical Specifications
| Rated Voltage Control Box | 60 kV |
| Voltage kV Current mA | 60 or 2 to 10 |
| Working Power Supply | 50 Hz AC 220 V ±10% |
| Voltage Measurement Accuracy | ±0.5% ±2 words, minimum resolution 0.1 kv, measurement range (range 10% to 1.1 times of range) |
| Current Measurement Accuracy | ±0.5% ±2 words, minimum resolution 0.1 µ a for anti-impact ammeter, 1 µ a for control box, measuring range (10% of range to full scale) |
| Ripple Coefficient | ≤0.5% |
| Voltage Stability | Random fluctuation, ≤0.5% when the grid voltage changes ±10% |
| Operation Mode | Intermittent working system, less than 30 minutes under rated load |
| Working Conditions | Temperature: 32° F to 104° F (0° C to 40 ° C), humidity less than 90% |
| Storage Conditions | Temperature: 14 ° F to 104 ° F (-10 ° C to 40 ° C), humidity less than 90% |
| Altitude | Below 1.86 mi (3000 meters) |
| External Dimension Control Box | 12.2 in x 9.8 in x 9.0 in (310 mm x 250 mm x 230 mm) |
| External Dimension DC High Voltage Generator | 18.5 in x 10.2 in x 8.6 in (470 mm x 260 mm x 220 mm) |
| Weight Control Box | 11.0 lb (5 kg) |
| Weight DC High Voltage Generator | 13.2 lb (6 kg) |
