Overview

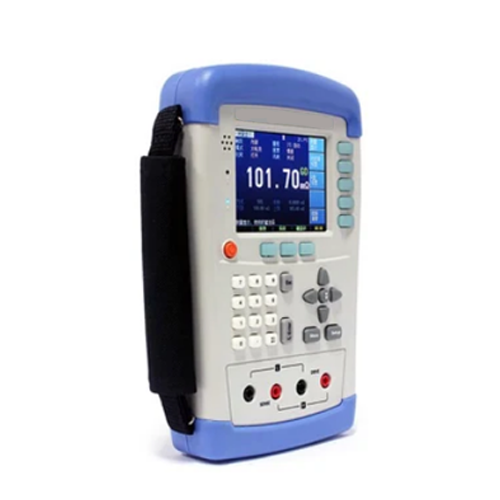

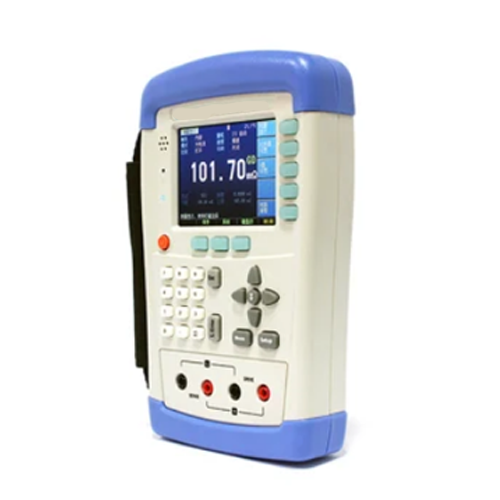

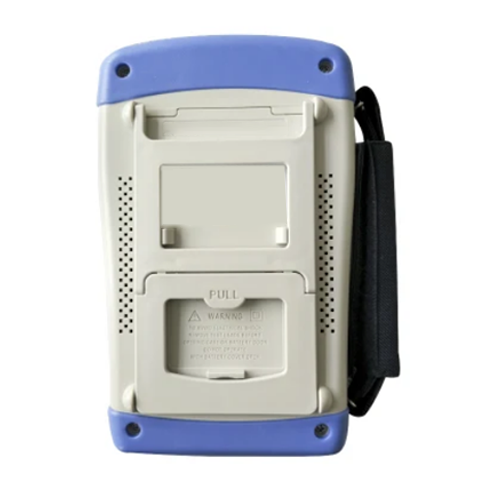

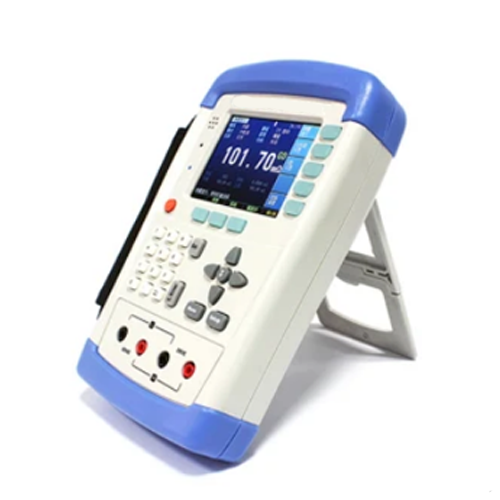

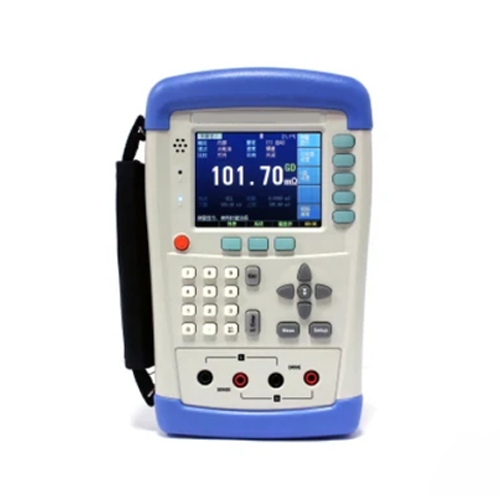

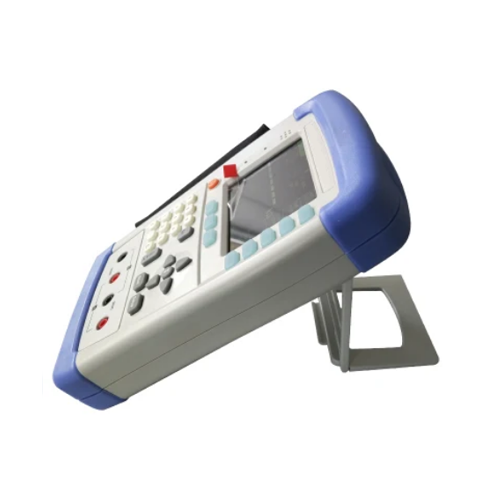

Hospitality Enviro Tech handheld DC milliohm meter is a high-performance instrument that utilizes a 32-bit ARM processor to ensure accurate and reliable measurements. With its wide measurement range, this meter is suitable for a variety of applications and can provide precise measurements of passive components in various scenarios. One of the standout features of this meter is its wide measurement range, which spans from 10μΩ to 20MΩ, with a maximum reading of 20000. This allows for versatile testing capabilities and ensures that it can handle a wide range of resistance values. Furthermore, the meter is equipped with a temperature compensation interface, which ensures that accurate measurements can be achieved even when testing speeds are below 15/s.
Features
- 32-bit ARM processor for accurate and reliable measurements
- Wide measurement range of 10μΩ to 20MΩ, with a maximum reading of 20000
- Temperature compensation interface for precise results regardless of testing conditions
- Current testing mode for different testing requirements
- Mini-USB interface for remote control, data acquisition, and analysis
- Versatile and suitable for various applications, including resistors, switch contact resistance, connectors, relays, transformers, inductors, motors, welding contacts, etc.
Technical Specifications
| Accuracy | 0.1% |
| Measurement Range | 10 μΩ to 200 KΩ |
| Signal Source | I-Max: < 1A Current |
| Range | Auto, manual, nominal with 7 ranges |
| Speed | 3 t/s |
| Result Display | ABS, PER, SEQ compare way |
| Max-Reading | 20000 dgt |
| Adjustment | Short-circuit Zero-Adjust for each range |
| Comparator | Build-in sorting record, GD/NG sorting result display |
| Trigger | Manual and Internal |
| Test Lead | 4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground section |
| Interface | Build-in Mini-USB Interface (VCP) |
| Power Supply (ATL909) | Input: 100 V to 240 V, 50 Hz / 60Hz, 0.35 A Output: 9V 1A DC |
| Battery Parameters | 8.4V, Li, 2200mAh rechargeable battery |
| Charging Time | Single continuous charging time: Max 300 min |
| Working Time | ≥ 8 hours |
| Size | Outside: 5.13 in * 8.3 in * 1.5 in (130.23 mm (Width) * 210.76 mm (Height) * 37.88 mm) |
