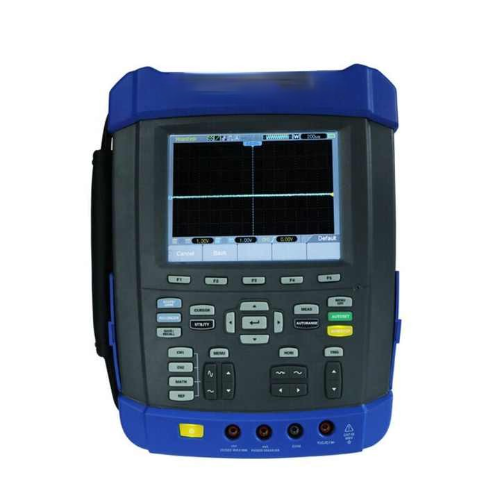

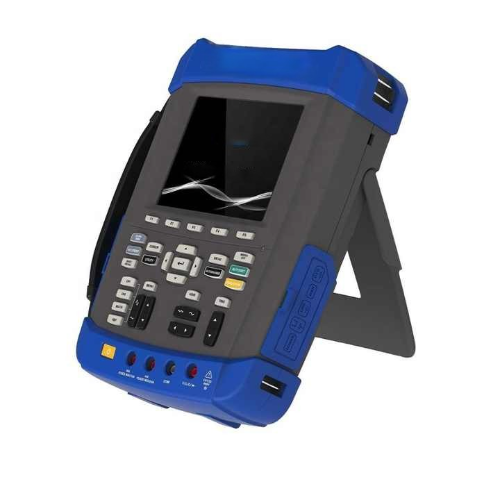

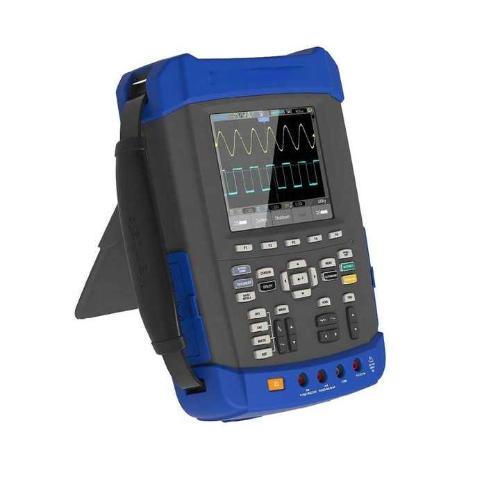

| Sample Modes |
Real-Time Sample |
| Normal |
Normal data only |
| Peak Detect |
High-frequency and Randon glitch capture |
| Average |
Waveform Average, selectable 4, 8, 16, 32, 64, 128 |

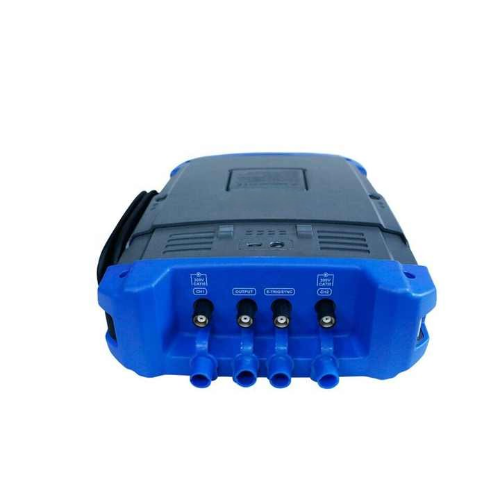

| Inputs |
| Inputs Coupling |
AC, DC, GND |
| Inputs Impendence |
1 MΩ ± 2 % or 20 pF ± 3 pF |
| Probe Attenuation |
1 X, 10 X |
| Supported Probe Attenuation Factor |
1 X, 10 X, 100 X, 1000 X |
| Maximum Input Voltage |
CAT I and CAT II: 300 VRMs (10 ×), Installation Category; |
| CAT III: 150 VRMs (1 ×) |
| Horizontal System |
| Sample Rate Range |
1 GS/s |
| Waveform Interpolation |
(Sin x)/x |
| Record Length |
78.74 in (2 m) |
| SEC/DIV Range |
4 ns/div to 2000 s/div, in a 2, 4, 8 sequence |
2 ns/div to 2000 s/div, in a 2, 4, 8 sequence |
| Sample Rate and |
± 50 ppm over any ≥ 1 mm’s time interval |
| Delay Time Accuracy |
| Scanning Speed Range |
4 ns/div to 8 ns/div; (-8 div x s/div) to 40 mms; |
2 ns/div to10 ns/div;(-4 div × s/div) to 20 mms; |
| 20 ns/div to 80 μs/div;(-8 div × s/div) to 40 mms; |
| 200 μs/div to 40 s/div;(-8 div × s/div) to 400s; |
| Delta Time Measurement Accuracy |
Single-shot, Normal mode: ± (1 sample interval +100 ppm × reading + 0.6 ns); |
| (Full Bandwidth) |
>16 averages: ± (1 sample interval + 100 ppm × reading + 0.4 ns); |
| |
Sample interval = s/div ÷ 200 |
| Vertical System |
| Vertical Resolution |
8-bit resolution, all channel sampled simultaneously |
| Volts Range |
2 mV/div to 100 V/div at input BNC |
| Bandwidth |
70 MHz |
100 MHz |
150 MHz |
200 MHz |
| Rise Time at BNC (typical) |
5 ns |
3.5 ns |
2.3 ns |
1.8 ns |
