Overview

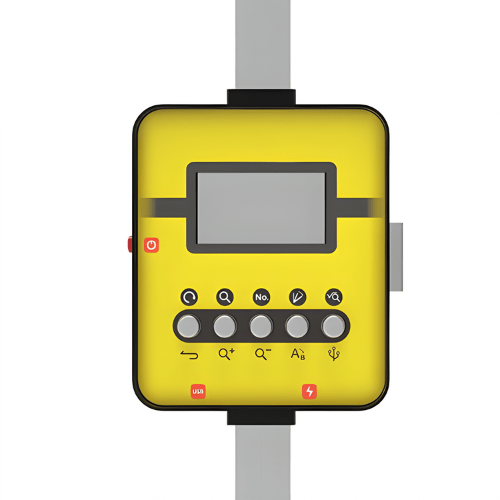

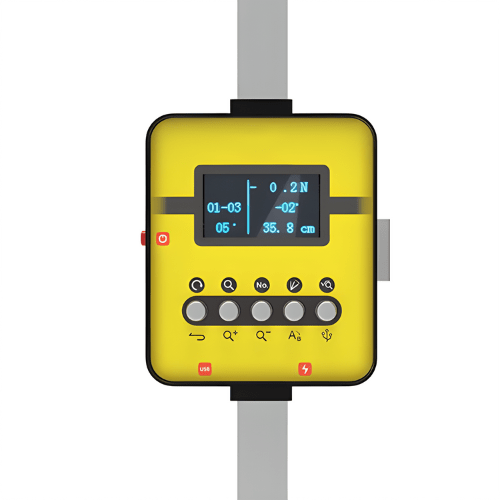

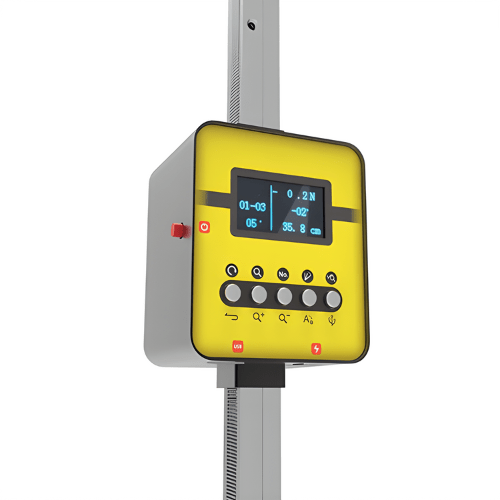

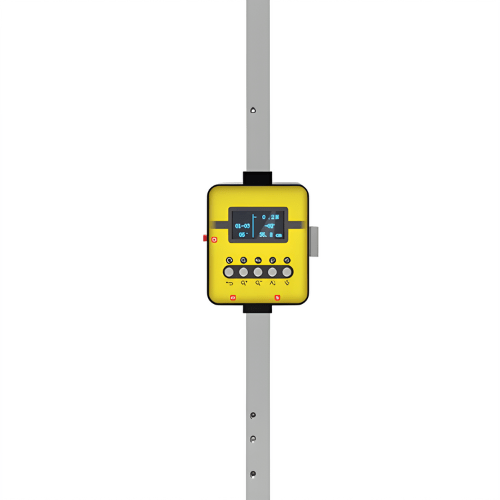

Hospitality Enviro Tech plant resistance tester, corn, sorghum, sugarcane and even seedlings crop stalk strength tester is used to measure the crop collapse mainly for corn, sorghum, sugarcane and even seedlings crops, field traits of the collapse of the live test. By simulating the process of wind blowing off the stalks of crops, the plant stalks resistance to overturning tilt angle and center of gravity height are measured, and then the plants resistance to overturning is calculated.
Features
- Single person operation
- Measured data for overturning resistance curve
- Data measurement in real time
- Convenient data viewing
- A wide range of measurement
- Large-capacity storage
- Adapt to a wide range
Technical Specifications
| Measurement Range Of overturning Force Value | above 10 N is about ± 2% below 10 N is about ±10% |
| Resolution Of Overturning Force Value | 0.1 N |
| Accuracy Of Anti-Collapse Force Value | above 10 N is about ±2% below 10 N is about ±10% |
| Angle Interval | 5°, 10°, 15° can be set, three grades can be selected |
| Tilt Angle Measurement Range | 0° to 90° |
| Tilt Angle Resolution | 1° |
| Tilt Angle Accuracy | ±2° |
| Center Of Gravity Height Accuracy | ±0.5% |
| Power Supply Mode | rechargeable lithium battery |
| Endurance Time | the device can be used for 6 hours to 8 hours of continuous work |
| Response Time | <1 |
| Center Of Gravity Height Measurement Range | 14.17 in to 59.05 in (36 cm to150 cm) |
| Resolution Of Center Of Gravity Height | 0.04 in (0.1 cm) |
| Stand Size | 0.98 in x 0.98 in x 68.89 in (25 mm x 25 mm x 1750 mm) |
| Host Size | 3.85 in x 4.73 in x 2.95 in (98 mm x 120 mm x 75 mm) |
