Features
- Multi positioning
- Compact size
- Magnetic fast charging
- Pet search by light and sound
Technical specifications
| Outer case | ABS Plastic |
| Waterproof level | IP 65 |
| Input voltage | 5 V / 1 A |
| Inbuilt Battery | 700 mAh (Polymer lithium battery) |
| Standby Current | Average standby Current <4 V / 5 mA |
| Working Current | Average Working Current around 4 V / 60 mA |
| SIM Card | Nona SIM Card |
| GSM antenna | Built-in FPC antenna |
| Operating temperature | -4 oF to 167 oF (-20 ℃ to 75 ℃) |
| Storing temperature | -22 oF to 176 oF (-30 ℃ to 80 ℃) |
| Operating humidity | 10% RH to 85% RH, Non-condensing |
| Communication network | PT32 A7670C: LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41; PT32 A7670E: LTE-FDD: B1/B3/B5/B7/B8/B20; GSM: 900MHz/1800MHz; PT32 A7670SA: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; GSM: 850MHz/900MHz/1800MHz/1900MHz |
| Positioning accuracy | <78.74 in (2000 mm) |
| Positioning methods | BDS / GPS / GLONASS |
| GPS Module | AT6558R |
| GPS antenna | Built-in FPC antenna |
| Sensor | 3D accelerometer |

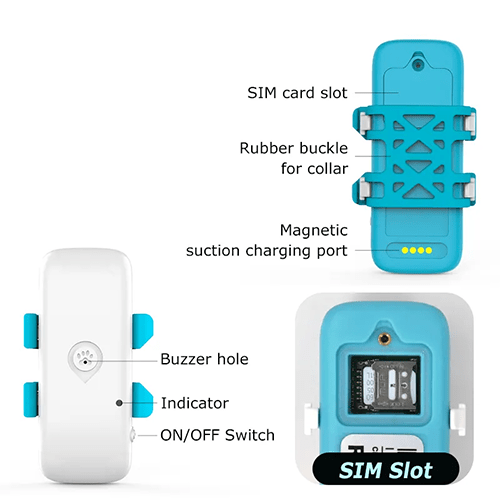

| I/O | 1 Magnetic suction charging port+Serial port; 1 Buzzer; 1 LED Light: Charging(Red)+GPS(Yellow)+4G(Blue)+Pet Seeking(White) 1 Switch |

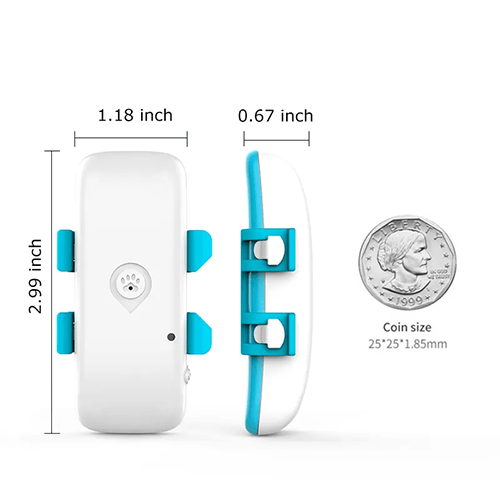

| Size | 2.98in x 1.48in (75.8mm x 37.6mm), without hook 1.18in x 0.74in(30mm x 19mm) |
| Weight | 0.09 lb (42.2 g) |
