Features
- Large 50,000 count 320 x 240 TFT color LCD display
- 20 MHz, 50 MS/s, bandwidth, Real time sample rate
- Logging function with Trend Capture for easy review of logged data
- PC interface for easy data transfer and accuracy calibration
- 100 kHz bandwidth (voltage or current)
- AC, AC+DC true-RMS measurements
- 025% DCV accuracy with Fully PC Calibration
- Saves measurements, records events and trends
- 20 Times/sec. A or D convert fast sampling time
- Peak capture (records transients as fast as 250 μs)
- Min, Max or Average with Time stamp (records signal fluctuations)
- Moto winding and low ohm (50 Ω) measurement range
- Low pass filter
- IP Rating 67
- Connect to smartphone or PC
- Meter box iMM & cloud service
Technical Specifications
| Display Size | 3.5″ color LCD; 320 x 240 pixels |
| Bandwidth | 20 MHz |
| Real time sample rate | 50 MS/s |
| Risetime | 10 ns |
| Channels | 1 |
| Vertical Sensitivity | 50 mV to 200 V/div |
| Vertical Resolution | 8 bits |
| Trigger Mode | Free Run, falling edge, rising edge |
| Trigger Source | Internal |
| Trigger Coupling | AC or DC |
| Input impedance | 1 MΩ / 200 pF |
| Max Input Voltage | 1000 V (peak) |
| Cursor Measurement | Voltage and time/ Frequency |

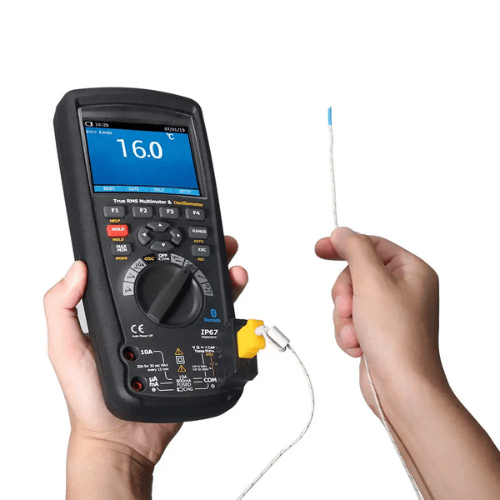

| Temperature | 122 ℉ to 1832 ℉ (50 ℃ to 1000 ℃) |
| Dimensions | 8.7 in x 3.8 in 2.4 in (220 mm x 96 mm x 60 mm) |
| weight | 1.39 Ib (0.631 Kg) |
